Proposed 4 units of 2-bedroom apartment.
Location: GRA AkURE
Features
Per Apartment (2 apartments each)
Bedroom 1 ensuit
Bedroom 2 ensuit
Visitor’s Restroom
Main Lounge
Dining Area
Kitchen
Laundry Room
Two stairways in all.

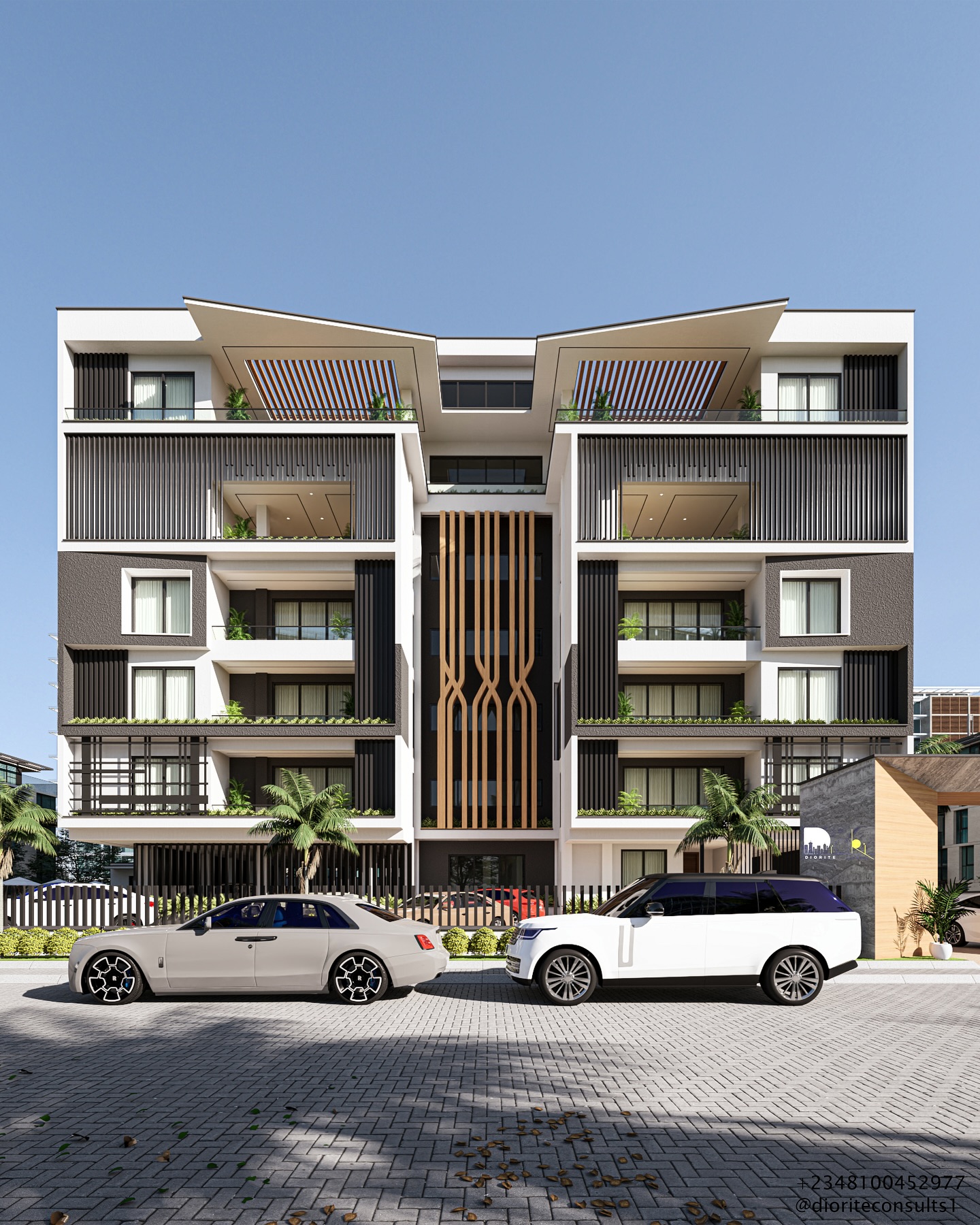

IZZYS BY DIORITESTRUCTURES
ACCRA GHANA
##IZZYS by Dioritestructures
#The best is yet to come
#proposed #condominium by #dioritestructures
By @dioriteconsults
Location :Accra Ghana
#dior #diorite
#dioritesconsults
Features include
Ground floor
Car parks for 20cars excluding the compound itself
Gym
Equipped gatehouse
Walk-ways
Green areas
Entrance route
Stairway
Elevator to all floors
Exit routes
Swimming pool with reaction areas and many more
First Floor
6Units of 1bedroom flat
Each unit with the following features.
A lounge
Visitor’s toilet
Sitout/Terrance
Kitchenette
Bedroom ensuit
Electrical/Box room
Exit routes
Elevator
Stairway
Second Floor
4Units of 2bedroom flat
Each unit with the following features.
A lounge
Visitor’s toilet
Sitout/Terrance
Kitchenette
Bedroom 1 ensuit
Bedroom 2 ensuit with closet
Electrical/Box room
Exit routes
Elevator
Stairway
Third Floor
6Units of 1bedroom flat
Each unit with the following features.
A lounge
Visitor’s toilet
Sitout/Terrance
Kitchenette
Bedroom ensuit
Electrical/Box room
Exit routes
Elevator
Stairway
Fourth Floor
2Units of 3bedroom flat
Each unit with the following features.
A foyer
A lounge
Visitor’s toilet
Terrance/Sitout
Dining area
Massive kitchen
Pantry/store
Laundry
Electrical room
Separate box room
Walkthrough Terrances
Exit routes
Bedroom 1 ensuit
Bedroom 2 ensuit
Bedroom 3 ensuit
Elevator for general use for the two flats.
Fifth Floor
A unit of 4bedroom pent house
Foyer
Lounge
Terrance/Sitout
Visitor’s toilet
Massive kitchen
Pantry/store
Massive laundry room
Box room
Electrical room
Bedroom 1 ensuit
Bedroom 2 ensuit
Bedroom 3 ensuit
Bedroom 4 ensuit with Sitout
Exit routes
Stairway
Elevator
Patio areas for recreation purposes
Pergola outdoor concept and many more
For more enquiry and for yours
info@dioritestructures.com.ng
08100452977(WhatsApp)

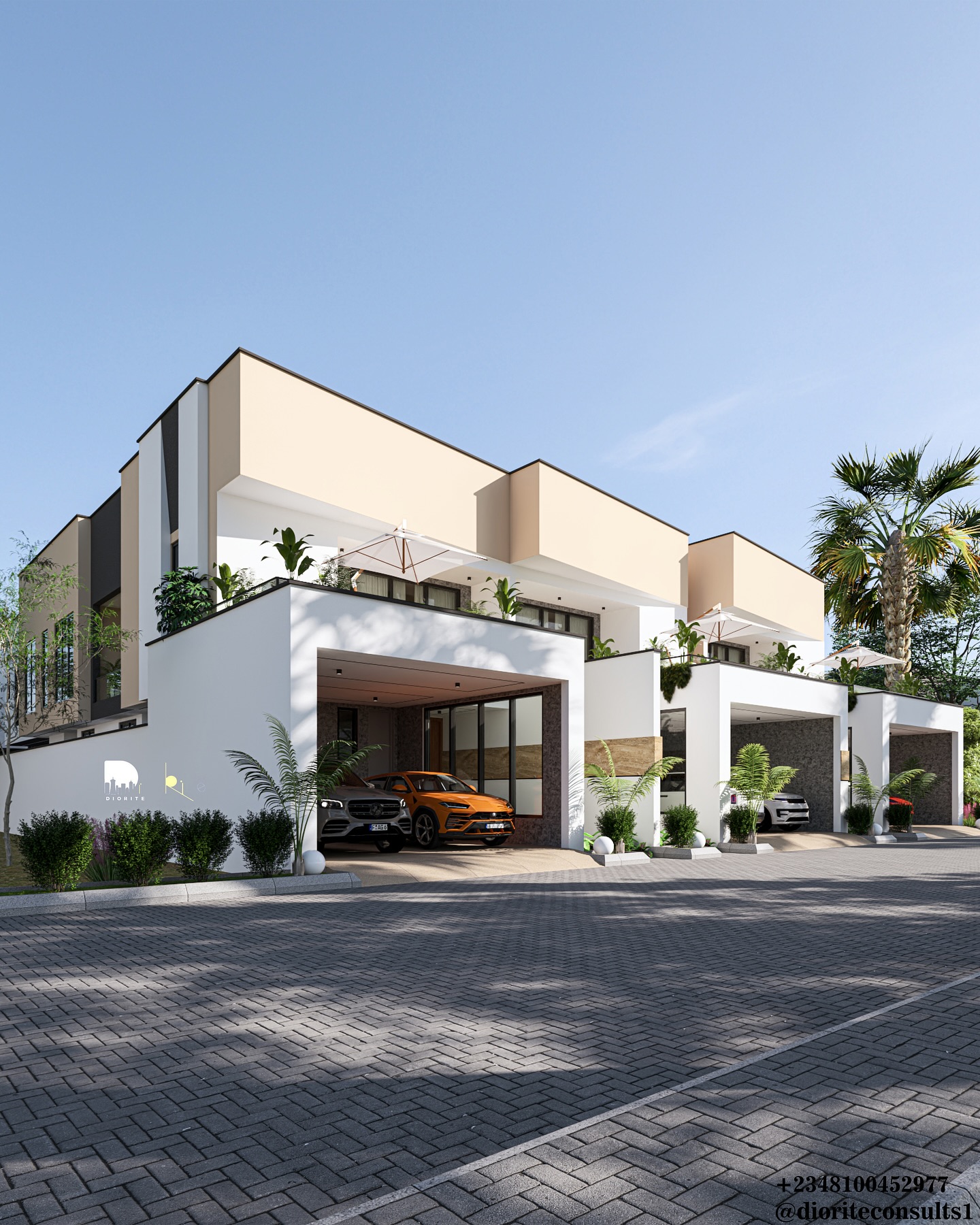

Proposed Terrance 5bedroom contemporary duplex with a unit of 2bedroom flat.
Location; Lagos island.
Plot…300Sqm
Similar concept to almost 4-5 building we’ve designed and built…. All internally modified to client’s pleasing and external keeping the facades….
Features
GROUND FLOOR
Entrance
Anteroom
Visitor’s WC
Guest bedroom en-suite with WIC
Main lounge
Dining with my attached Stairway sample
Bar
Kitchen/ with pantry
Laundry
Store
Alfreso area with kitchenette
2Bq en-suite
FIRST FLOOR
Circulation with a void over main lounge (over the main lounge not dinning)
Family lounge with a sit-out
Bedroom 2 en-suite with a closet
Bedroom 3 en-suite with a closet plus a sit-out
Bedroom 4 with closet
Common toilet with bathroom with bathtub.
Master’s bedroom with sofa standard arrangement with a spacious closet and a separate toilet/convenience also with a sit-out
Library/Office
Linen closet
For more enquiry:
info@dioritestructures.com.ng
www.dioritestructures.com.ng
08100452977(WhatsApp)
Proposed Terrance 5bedroom contemporary duplex
Location; Ishaigu, Ebonyi State
The following to be factored into the design brief.
• Headroom
• A floor design to be considered
• Gallery concept with the family lounge viewing over the main Lounge
• Glazed contemporary structure
• Concealed roof concept
• Outdoor living to be considered
• Modified façade – not similar to the image forwarded
Features
Ground Floor
• Entrance (enhanced from image forwarded)
• Anteroom
• Lobby
• Visitor’s WC
• Guest bedroom ensuite with a terrace
• Main Lounge
• Helical Stairway
• Dining
• Kitchen
• Pantry
• Laundry Exit Store/pantry
• 2 rooms BQ apartment – attached to security post (with mini kitchen and toilets)
First Floor
• Circulation Gallery/void over lounge
• Study room
• Lobby
• Box room
• Bedroom 4 ensuite with a Terrance
• Master bedroom with WIC with a Terrance
• Family living room with terrace
• Patio
|
Proposed Contemporary 6bedroom Terrance Duplex Location: KIGALI RWANDA
Plot Area; 1000sqm
GROUND FLOOR
A Good welcoming entranceAAnte
room Visitor’s WC
A Lobby
Guest Bedroom ensuit
The main lounge with a glazed open to the pool : This must be spacious with good Natural luminosity. D
with a Contemporary wine cellar Kitchen : Spacious open to the Garden.
Gymnastic area
Exit
A Library
Guest Bedroom ensuit
The pool : Not in a rectangular Shape
FIRST FLOOR
Lounge with a walk through with a Terrace
Cinema room
Masters Bedroom ensuit with a private lounge and a mini office with a good Terrace
Madam’s Bedroom with a glazed Wall panel ensuit with WIC as well as a private sitting area.
Children’s Bedroom ENSUIT with WIC
PENT FLOOR
Master’s private massive Bedroom with lounge Open Terrace for the master Bedroom Walk in closet Toilet for the patio
ACCESSORIES-ANNEX HOUSE OF : With 2 BEDROOMS With a Laundry With A WIC AND BATHROOM. With A MINI LOUNGE With A store -A Pergola with a good view to the pool.
Contemporary 6bedroom Duplex
Plot Allocated: 500sqm
LAGOS Nigeria!
Features
Ground Floor
Entrance
Anteroom
Lobby
Visitor’s wc
Guest bedroom ensuit with WIC
Spacious Main Lounge
Winder stairway
Dining with terrace with fully glazed door
Kitchen
Laundry
Exit
Store/pantry
BQ apartment
Entrance
Bedroom
Kitchenette
Toilet
WIC
First Floor
Circulation
Gallery/void over lounge
Separate dogleg stairway heading to the pent floor
Spacious upper family lounge
Study room
Box room
Cinema room
Bedroom 3 ensuit with WIC
Bedroom 4 ensuit with WIC
Master bedroom
Wide WIC
T/bath with a makeup desk settings
Pent Floor
Circulation
Pent floor lounge
Kitchenette
Bedroom 6 ensuit with WIC
Wide area for patio and recreation wide green area.
Contemporary 6Bedroom Duplex
Location: Lagos Nigeria
Plot allocated: 450sqm
FEATURES
GROUND FLOOR
Entrance
Anteroom
Visitor’s wc
Main Lounge
Dining
Stairway
Kitchen
Store
Laundry
Exit
Guest bedroom ensuit with WIC
Maid bedroom ensuit
FIRST FLOOR
Family lounge
Sit-out
Box room
Library
Master’s bedroom ensuit with sit-out
Spacious WIC
Bedroom 3 ensuit with WIC and a sit-out
Bedroom 4 ensuit with WIC
PENT FLOOR
Fourth lounge, spacious
Bar
Kitchenette
Toilet
Bedroom 5 ensuit with WIC and a full walk way around the two faces of the building…this can best or alternatively serve for the masters. The Walk area connect both the lounge and the bedroom
NOTE:
Master’s bedroom and the pent floor bedroom has a sofa set arrangement for the bedroom with a full plain mirror doors.
Plot optional for a bit less than 450sqm in regard to the shape of the plot.
Thanks for your patronage.
Proposed 4Bedroom Duplex.
Owerri Imo State, Nigeria.
Client: USA
Seating on 235sqm of land.
Features
Ground floor
Foyer
Visitor’s wc
Main Lounge
Dining
Circulation
Stairway
Guest bedroom ensuit
Kitchen
Store
Laundry
Exit
First floor
Circulation
Family lounge with balcony
Master’s bedroom with side balcony
Two standard closets for masters and madam separate with a massive toilet for the king and queen
Children’s bedroom ensuit with WIC
Ledger
Pent Floor
Separate stairway
Private lounge with balcony
Private bedroom ensuit with WIC
Study room.
Note: every detail with client’s approval and choices.
Thanks for following
We are a fast growing design and construction firm with personalities that ‘best’ can’t beat. Young, innovative, intelligent, smart and passionate are these personalities with expertise in the firm.
