PLEASE NOTE; PROJECT DETAILS ARE BELOW THE VISUALS.

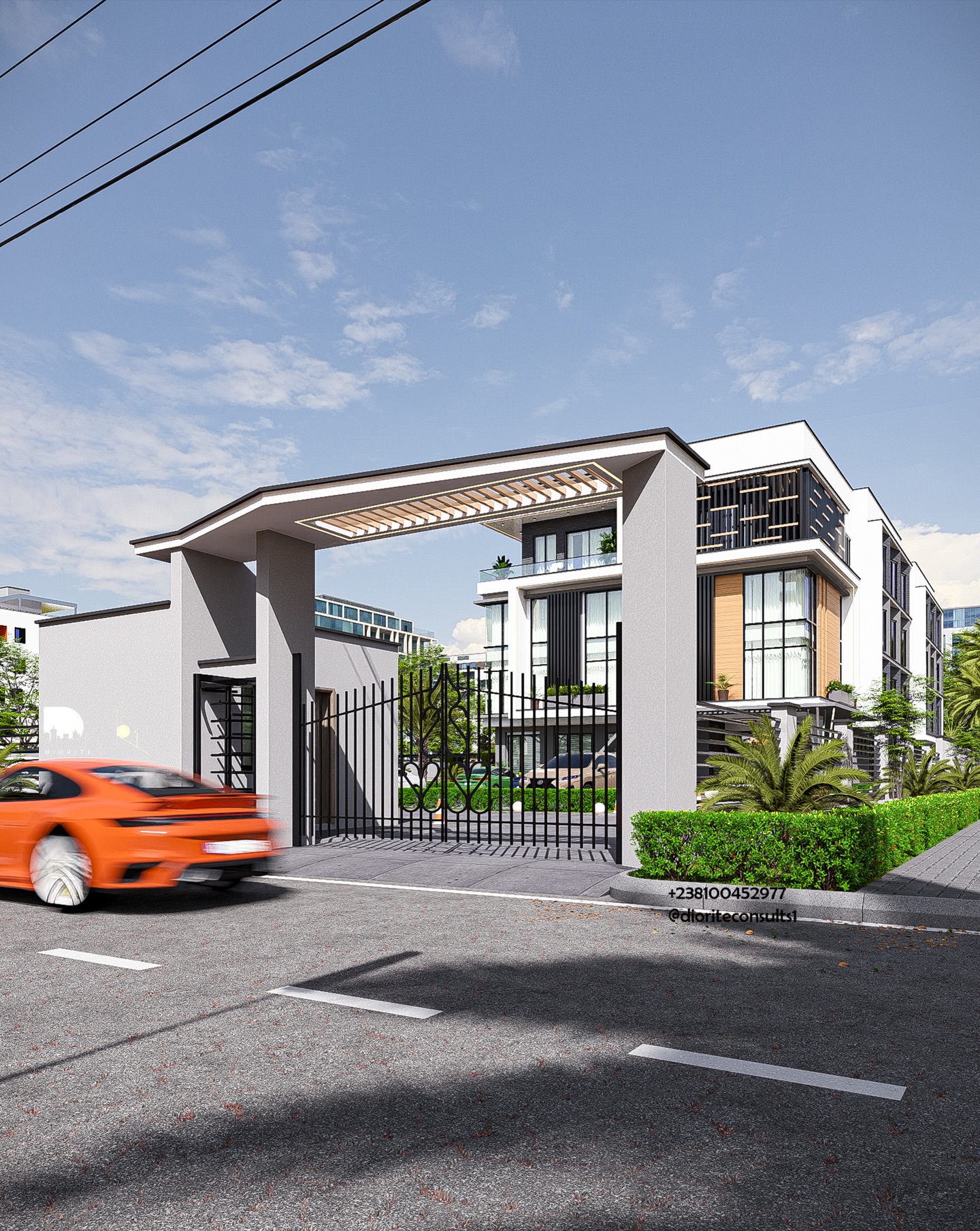

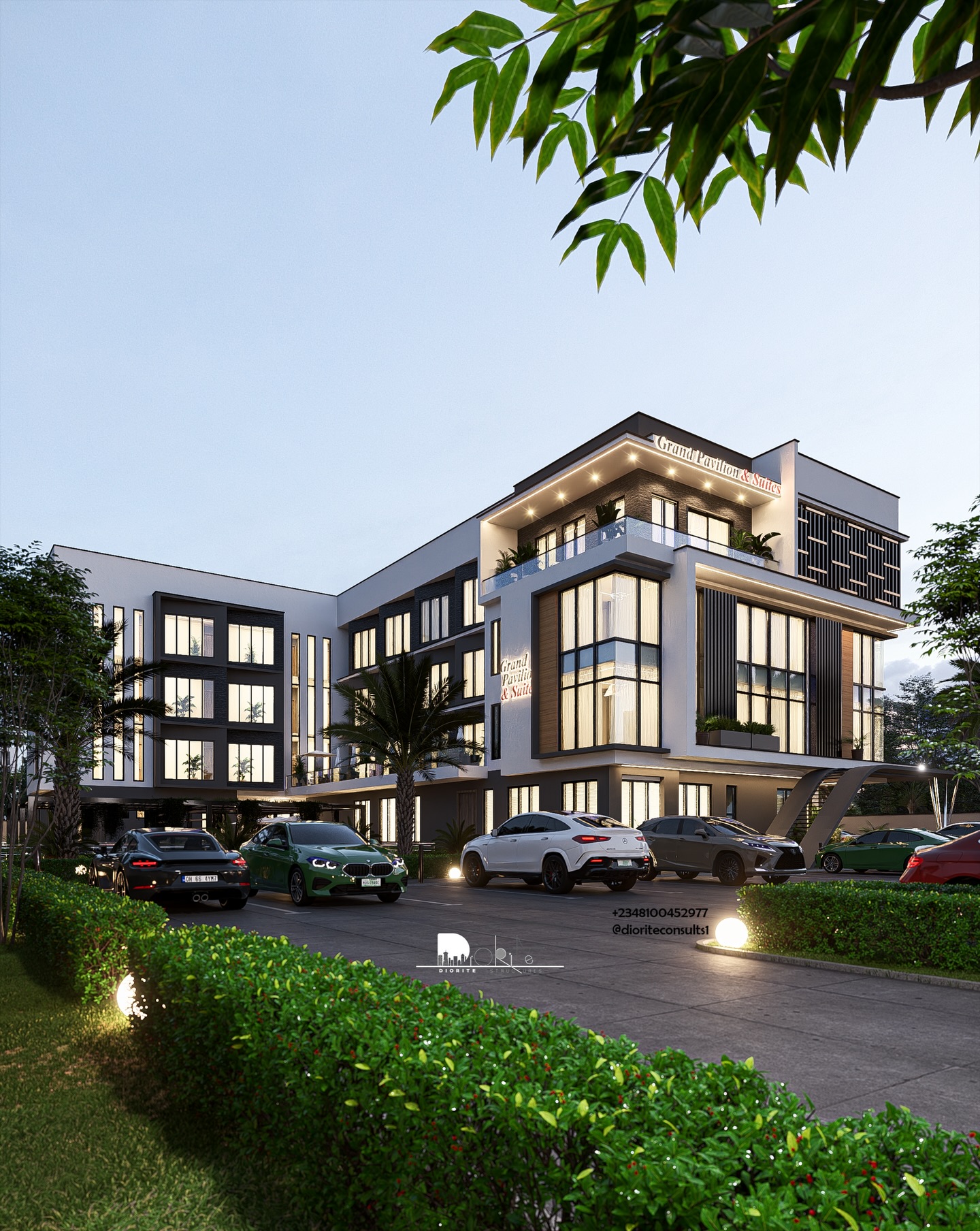

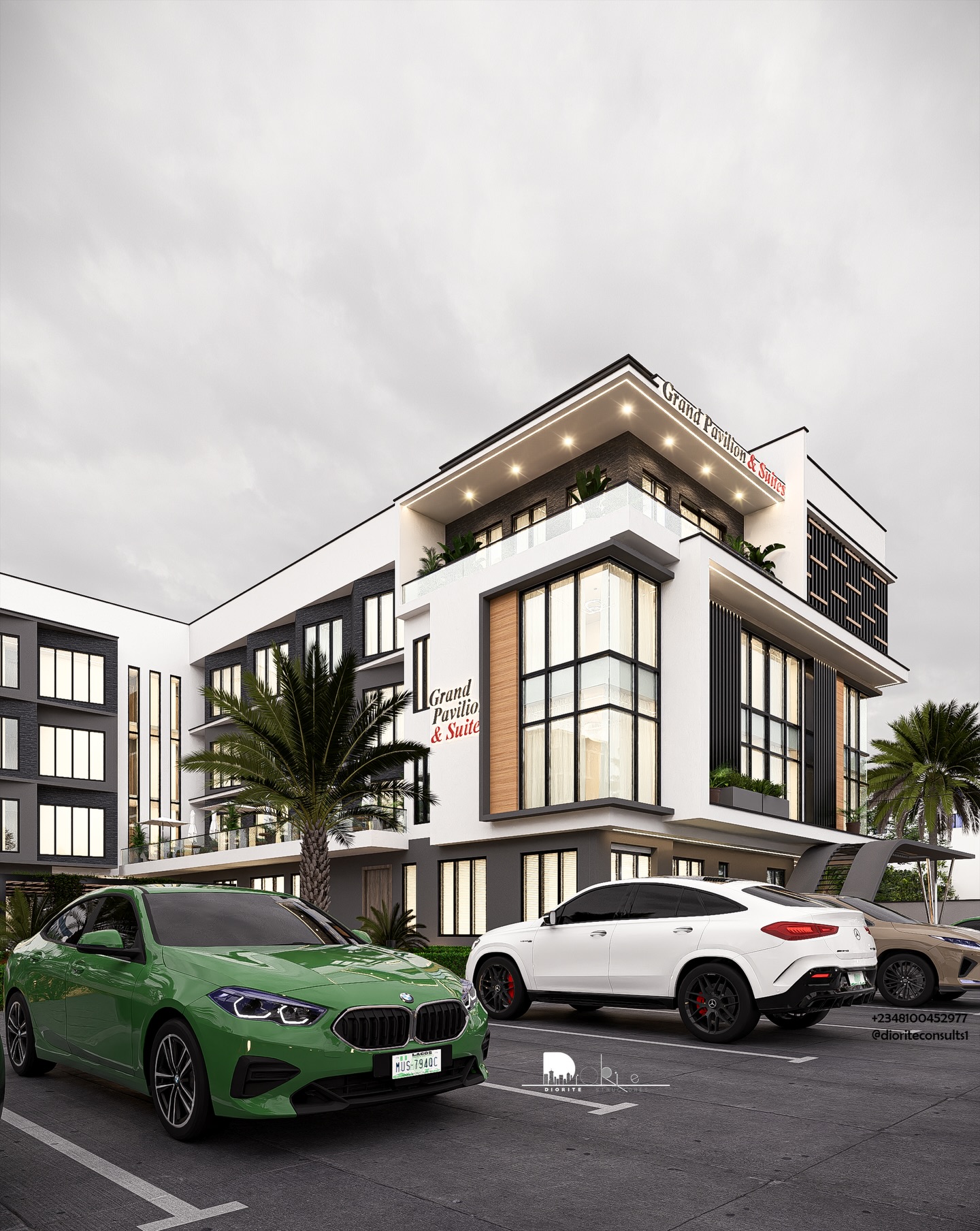

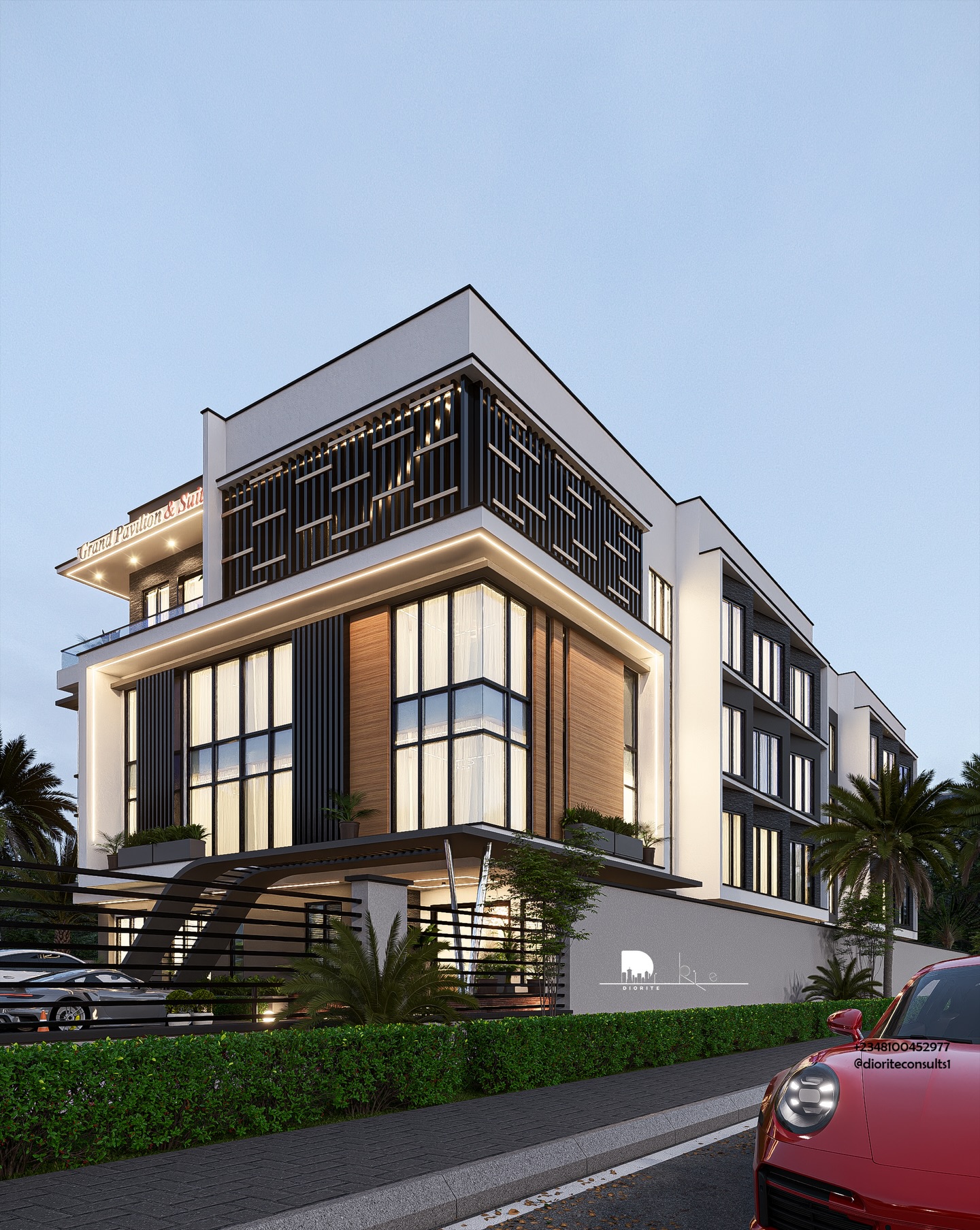

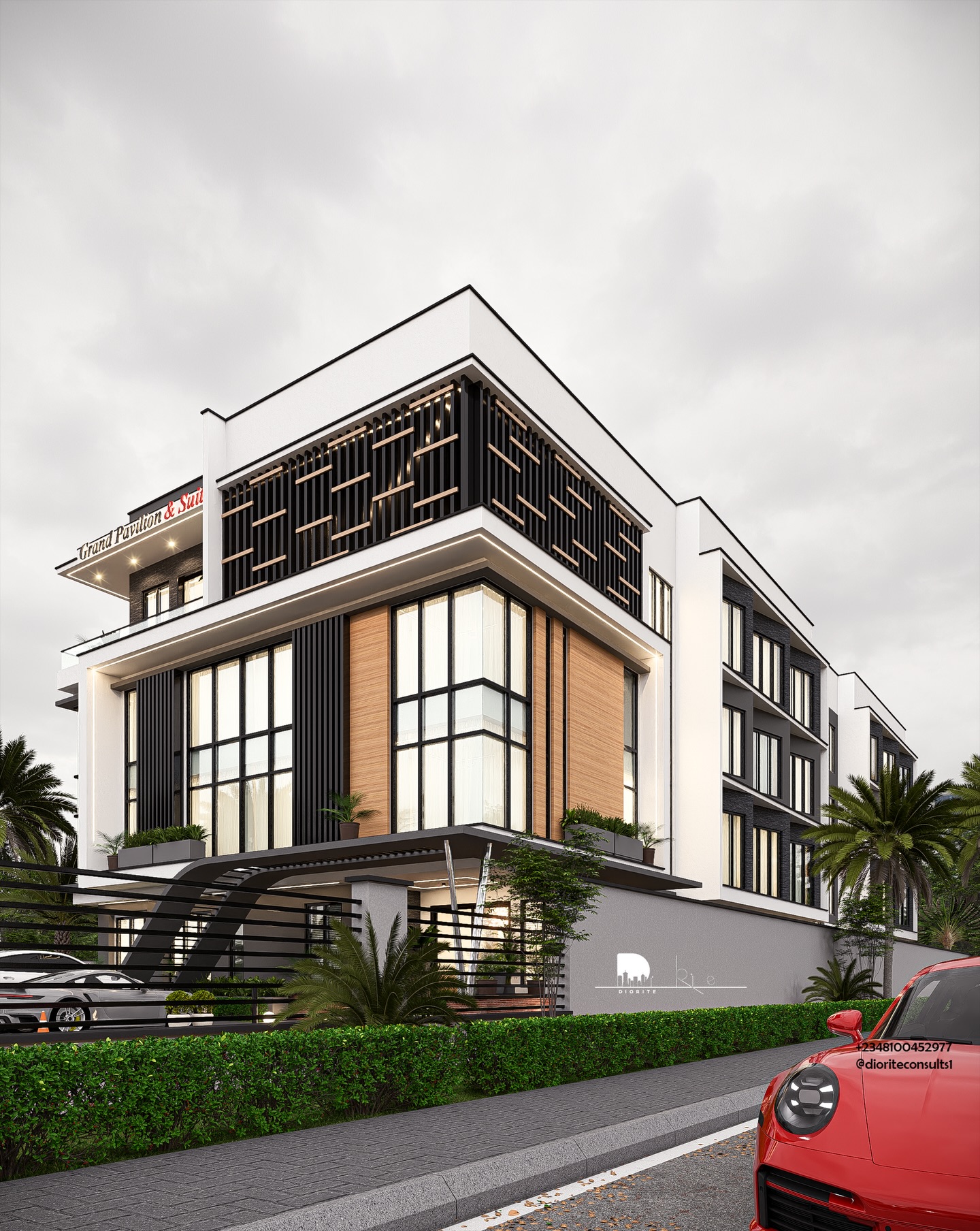

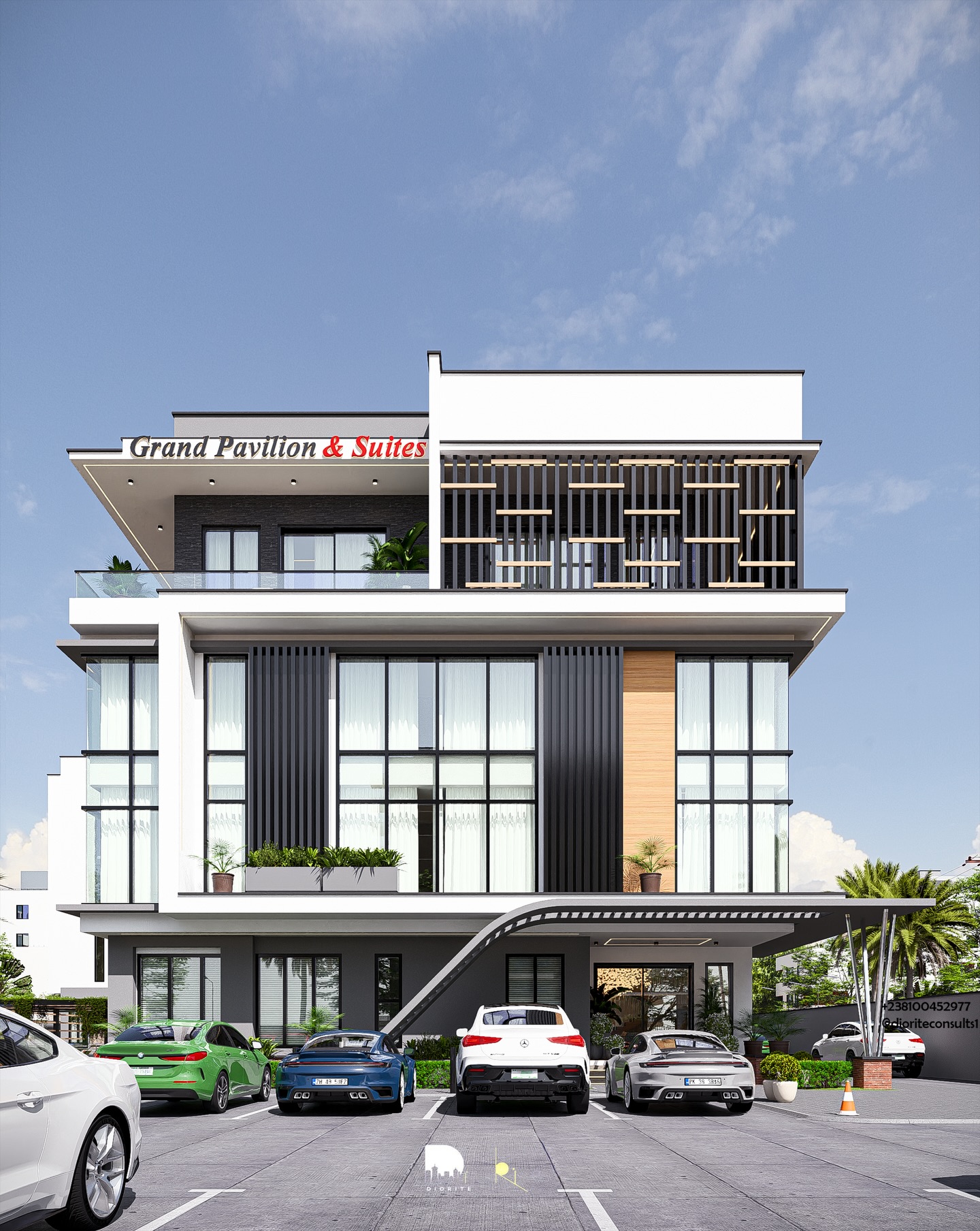

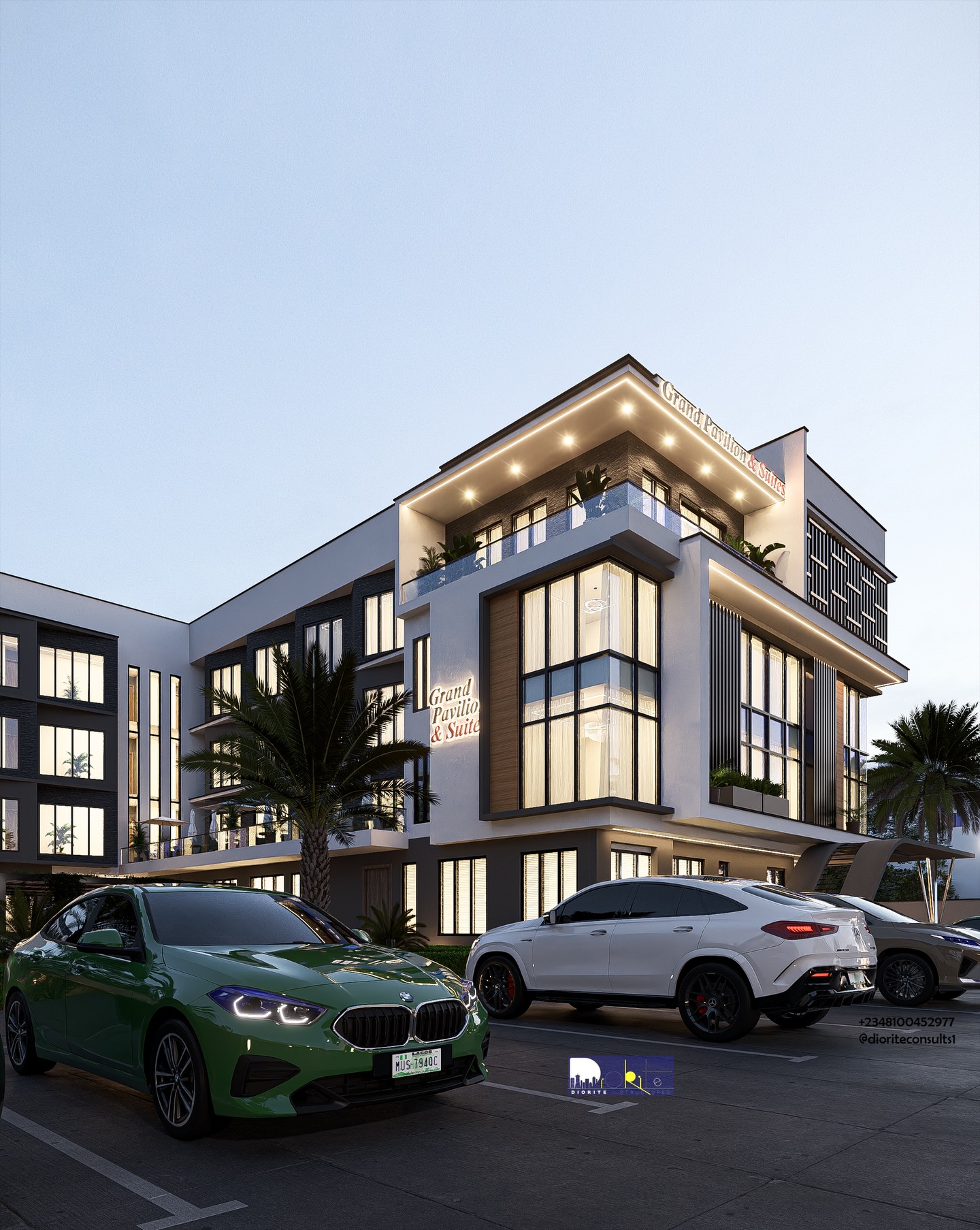

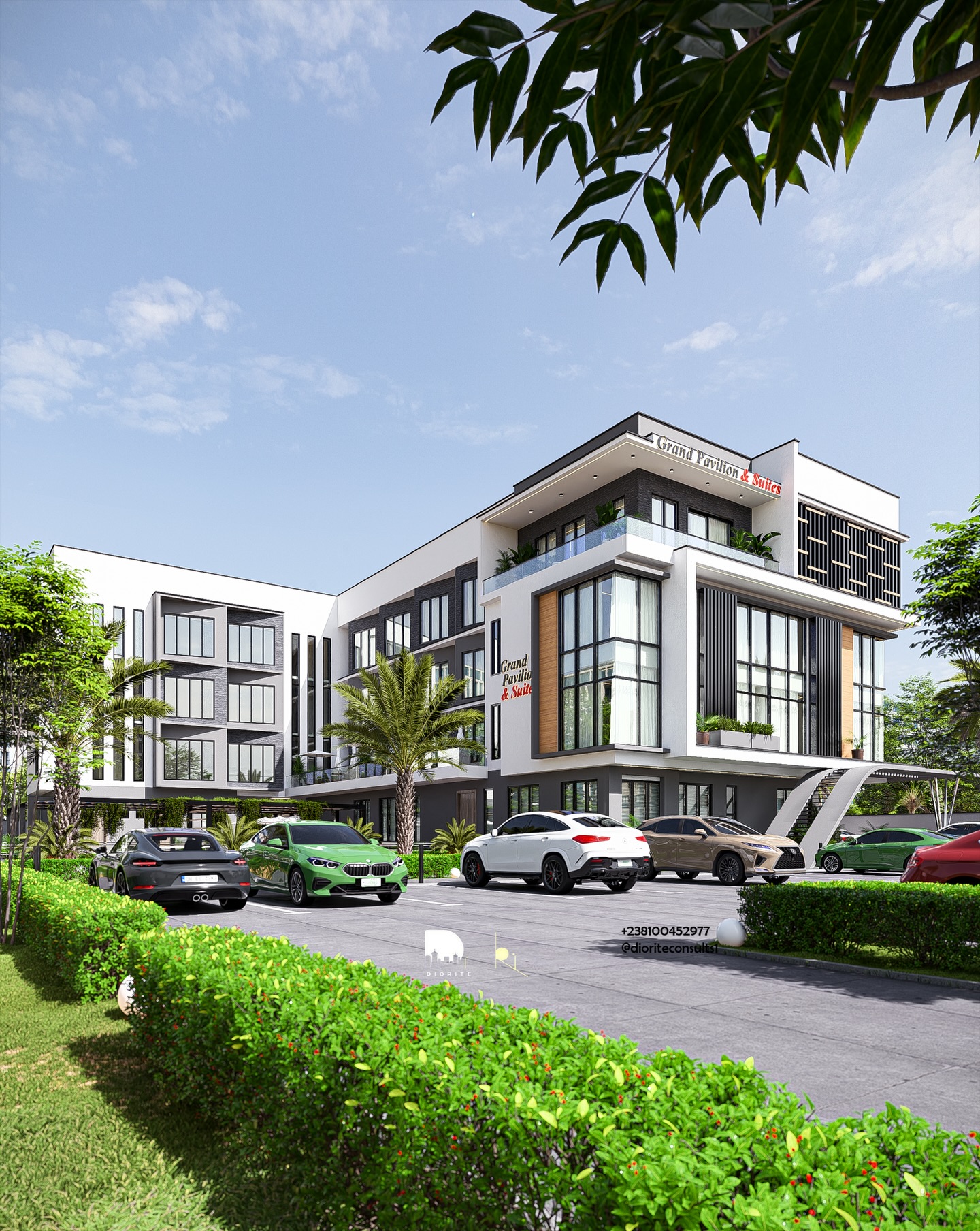

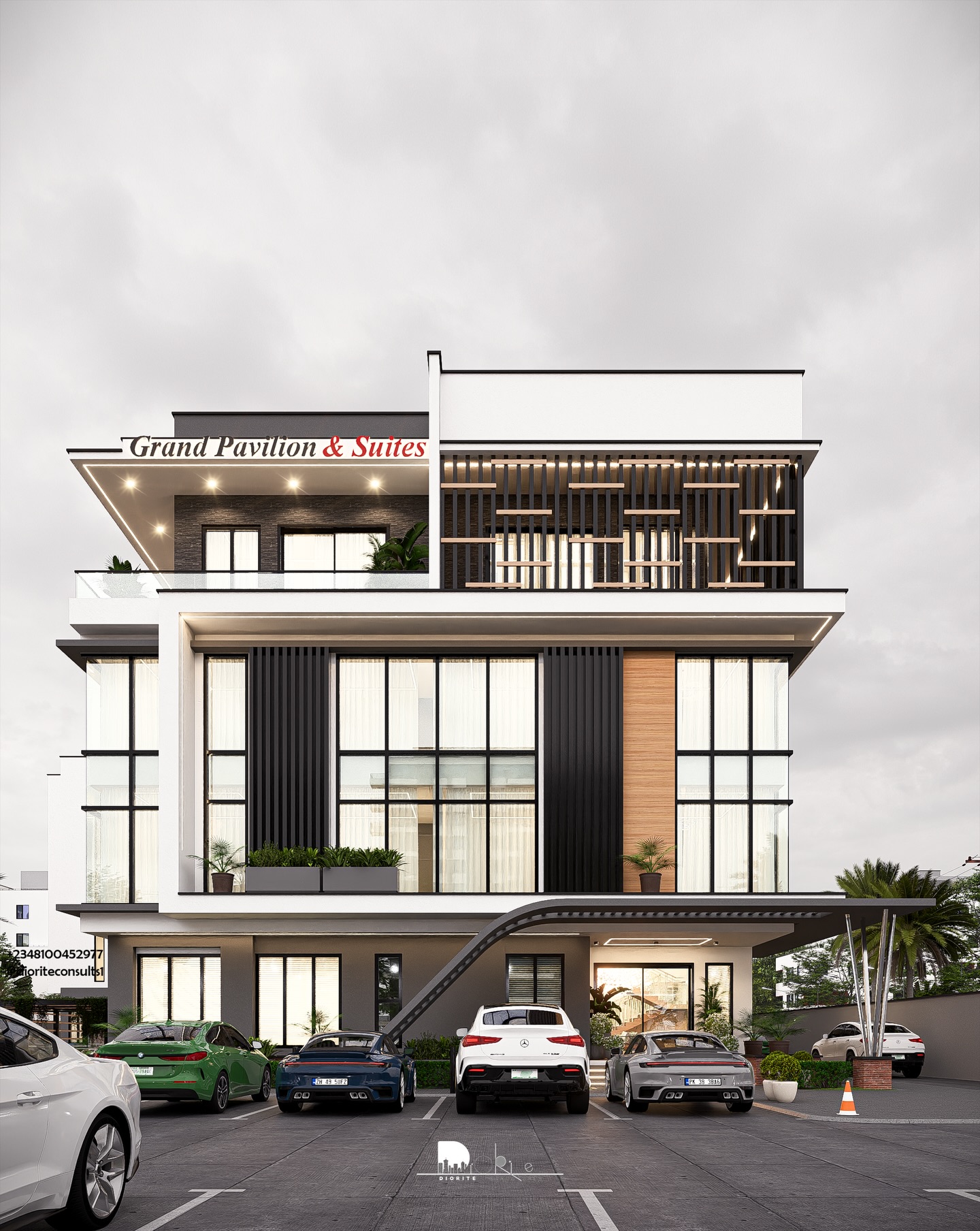

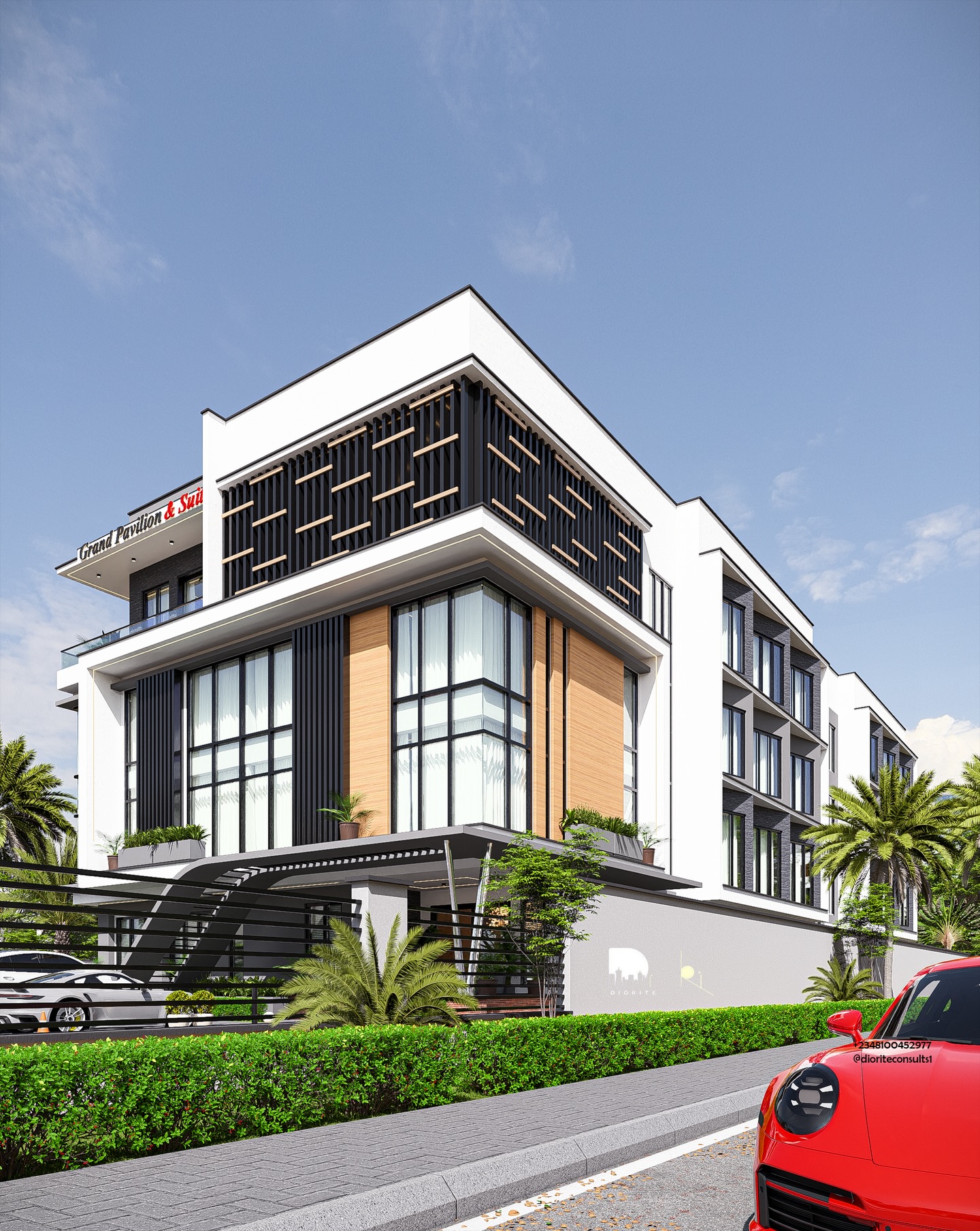

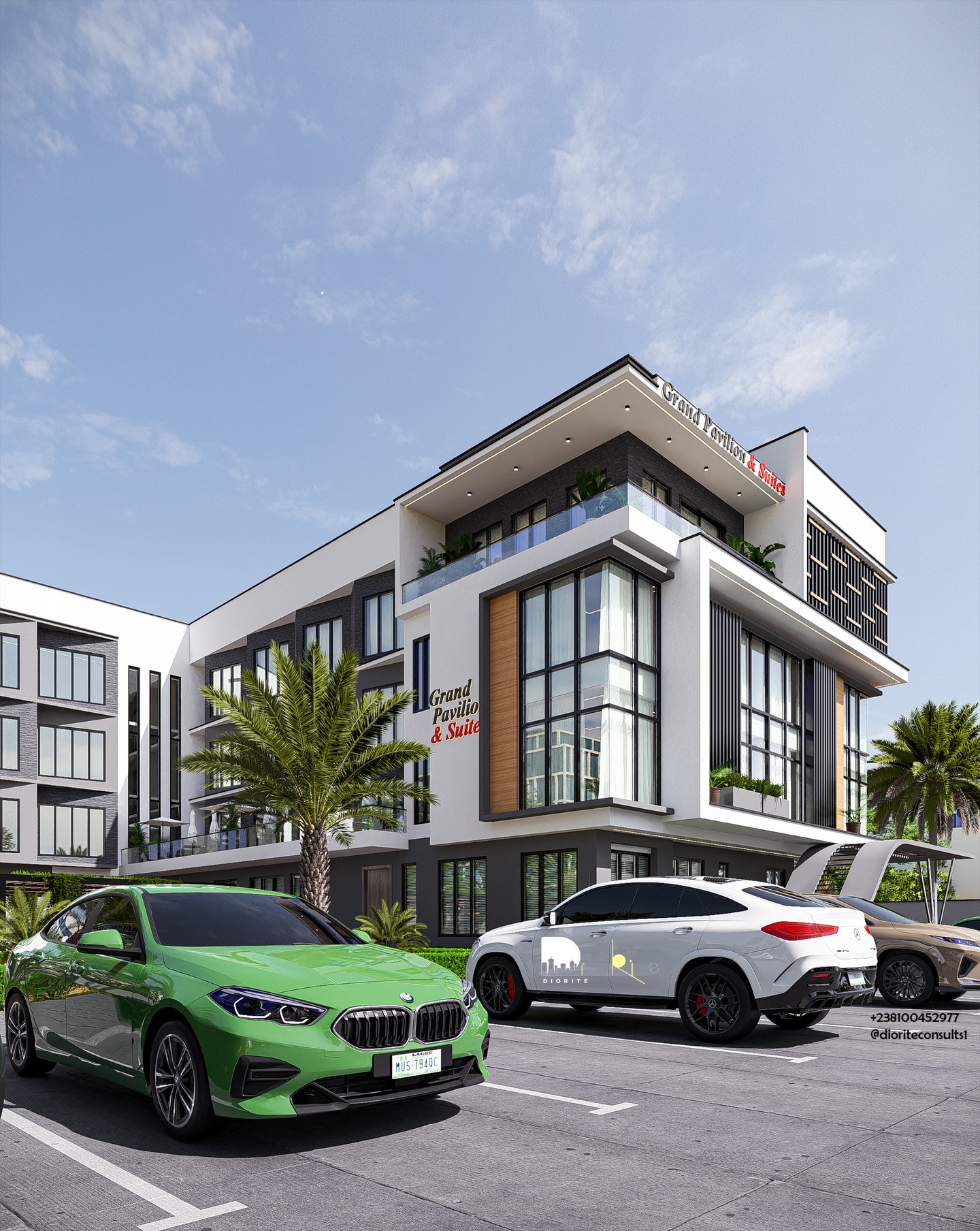

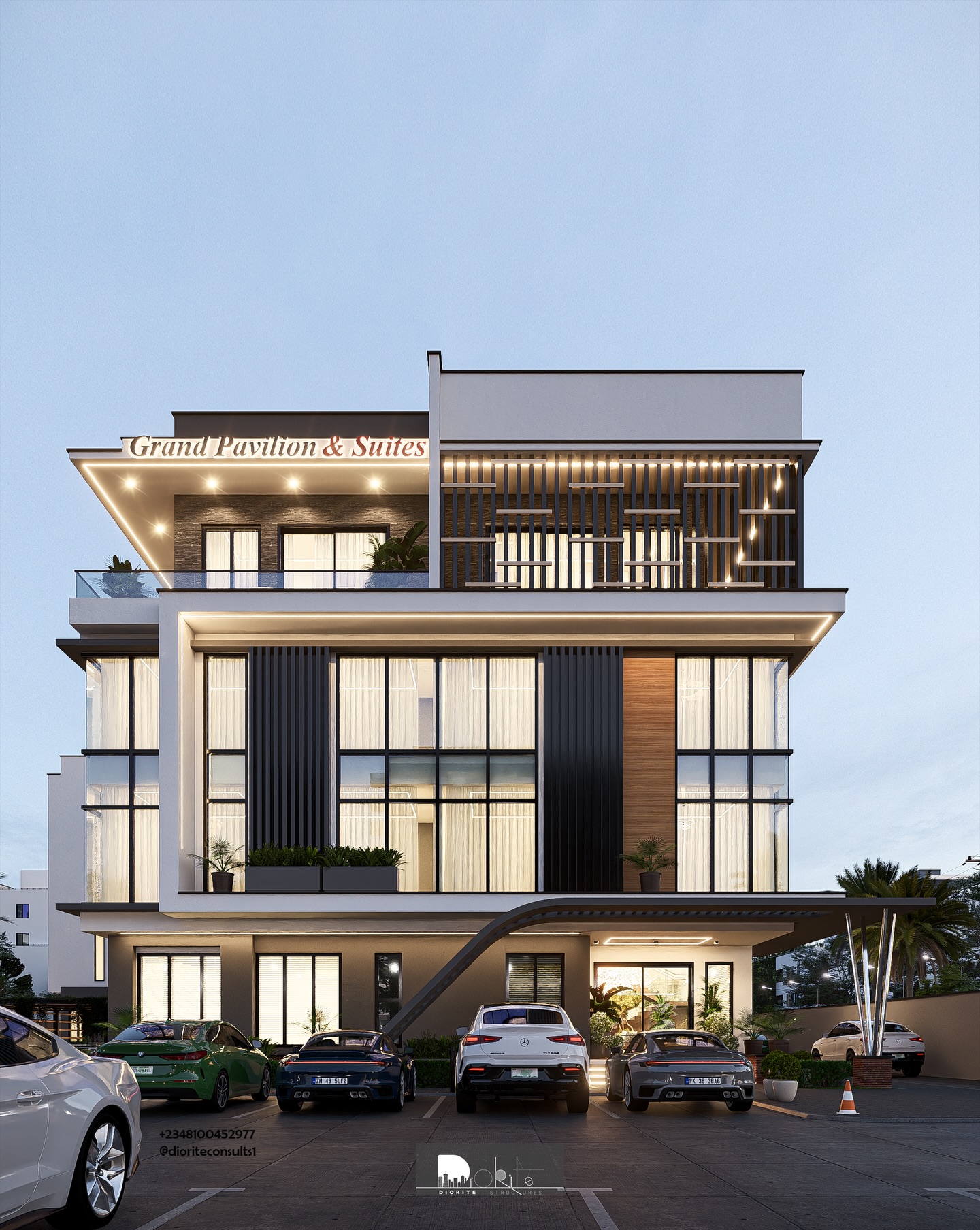

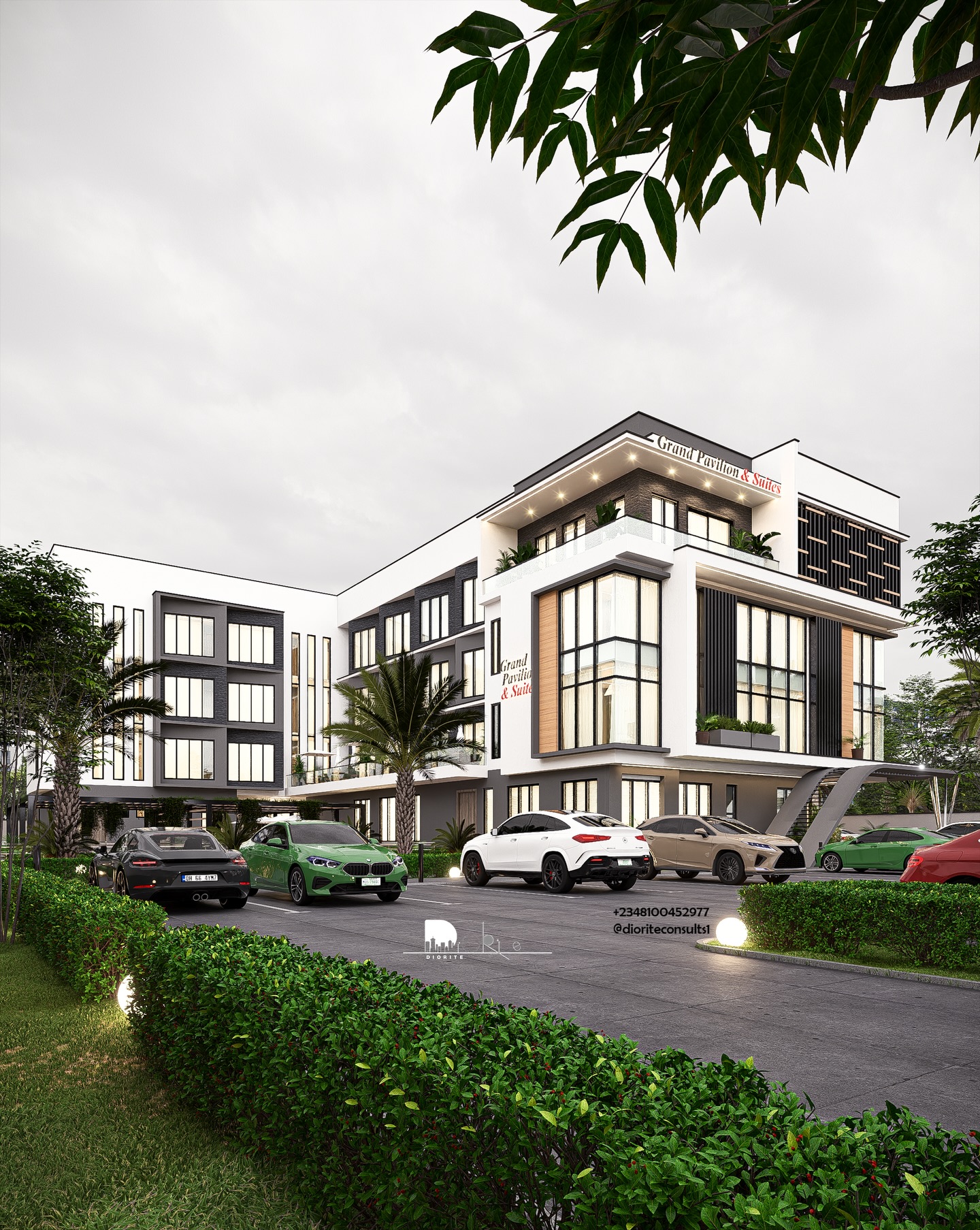

GRAND PAVILION & SUITES
PLOT SIZE; 3,504.456 Sq.m ~ 37,721.96 Sq.ft
LOCATION: ASABA, DELTA STATE.
DESIGNED AND VISUALIZED by: Dioritestructures Ltd
SPACE ALLOCATION AND DESCRIPTION
MINIMUM LAND SIZE; 3,504.456 Sq.m ~ 37,721.96 Sq.ft
BUILDING AREA; 867.174 Sq.m ~ 9,334.26 Sq.ft
LENGTH ❌ BREADTH; mm by mm
BUILDING HEADROOM; 3,450 mm {11 ft} Floor to Ceiling
NUMBER OF LOUNGES; 17 {SEVENTEEN}
NUMBER OF ROOMS; 55{FIFTY FIVE}
NUMBER OF RESTROOM; 66 {SIXTY SIX}
NUMBER OF FLOORS; 4 {FOUR}
ROUGH ESTIMATE (COST/CARCASS; FOUNDATION TO ROOFING); NIL {without finishing & furnishing}
_____________________________________________________________
𝐏𝐋𝐀𝐍 𝐃𝐄𝐒𝐂𝐑𝐈𝐏𝐓𝐈𝐎𝐍 {𝐒𝐔𝐌𝐌𝐀𝐑𝐘}
𝐆𝐫𝐚𝐧𝐝 𝐏𝐚𝐯𝐢𝐥𝐢𝐨𝐧 & 𝐒𝐮𝐢𝐭𝐞𝐬❤️✅
𝐒𝐩𝐚𝐭𝐢𝐚𝐥 𝐀𝐧𝐚𝐥𝐲𝐬𝐢𝐬 & 𝐁𝐫𝐢𝐞𝐟;
Plot size; 3,504.456 Sq.m
Building Footprint; 867.174 Sq.m
Plot Length X Breadth; 45.8m X 31.3m
Headroom; 3.45m high
Number of Rooms; 55 {More details on our website}

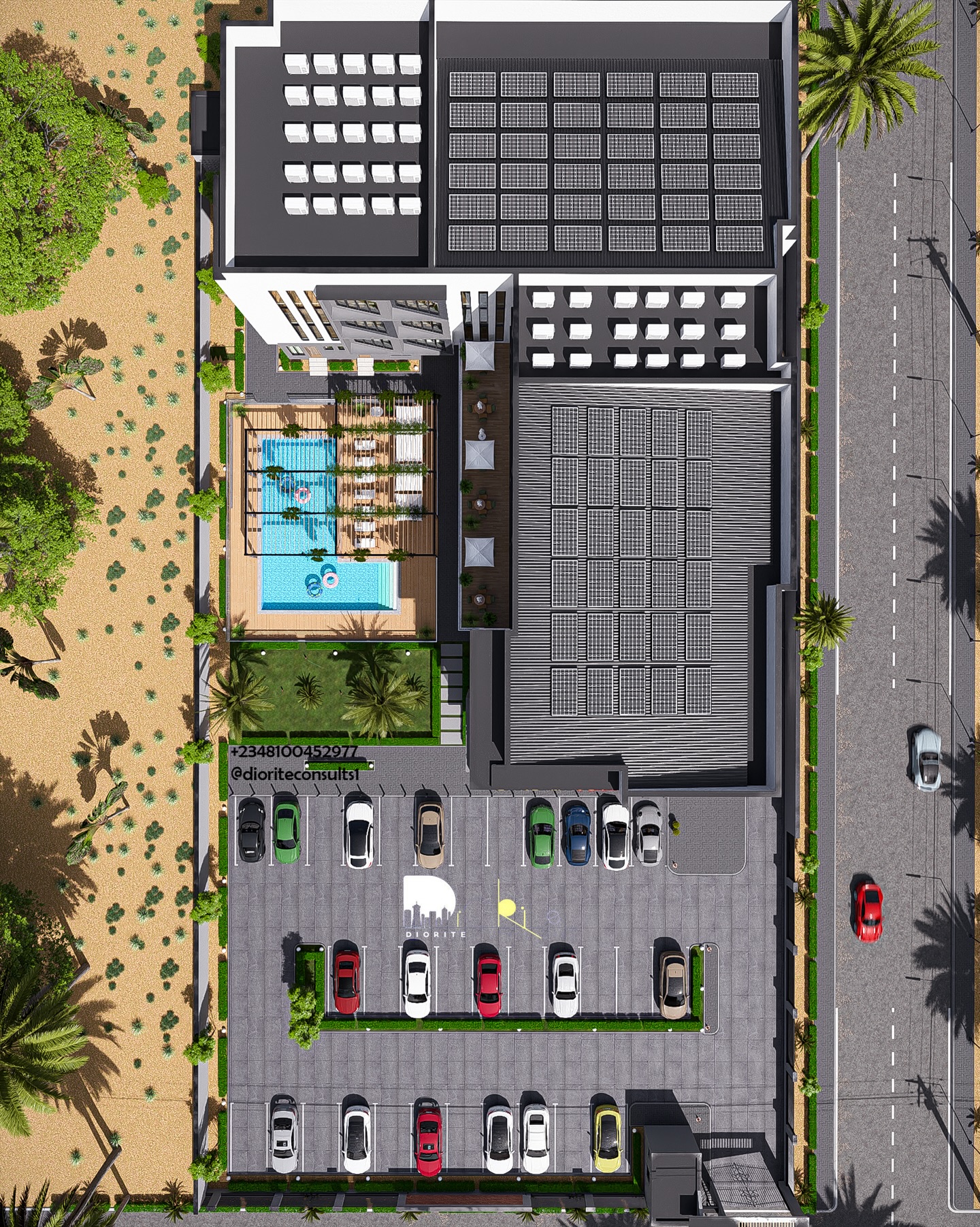

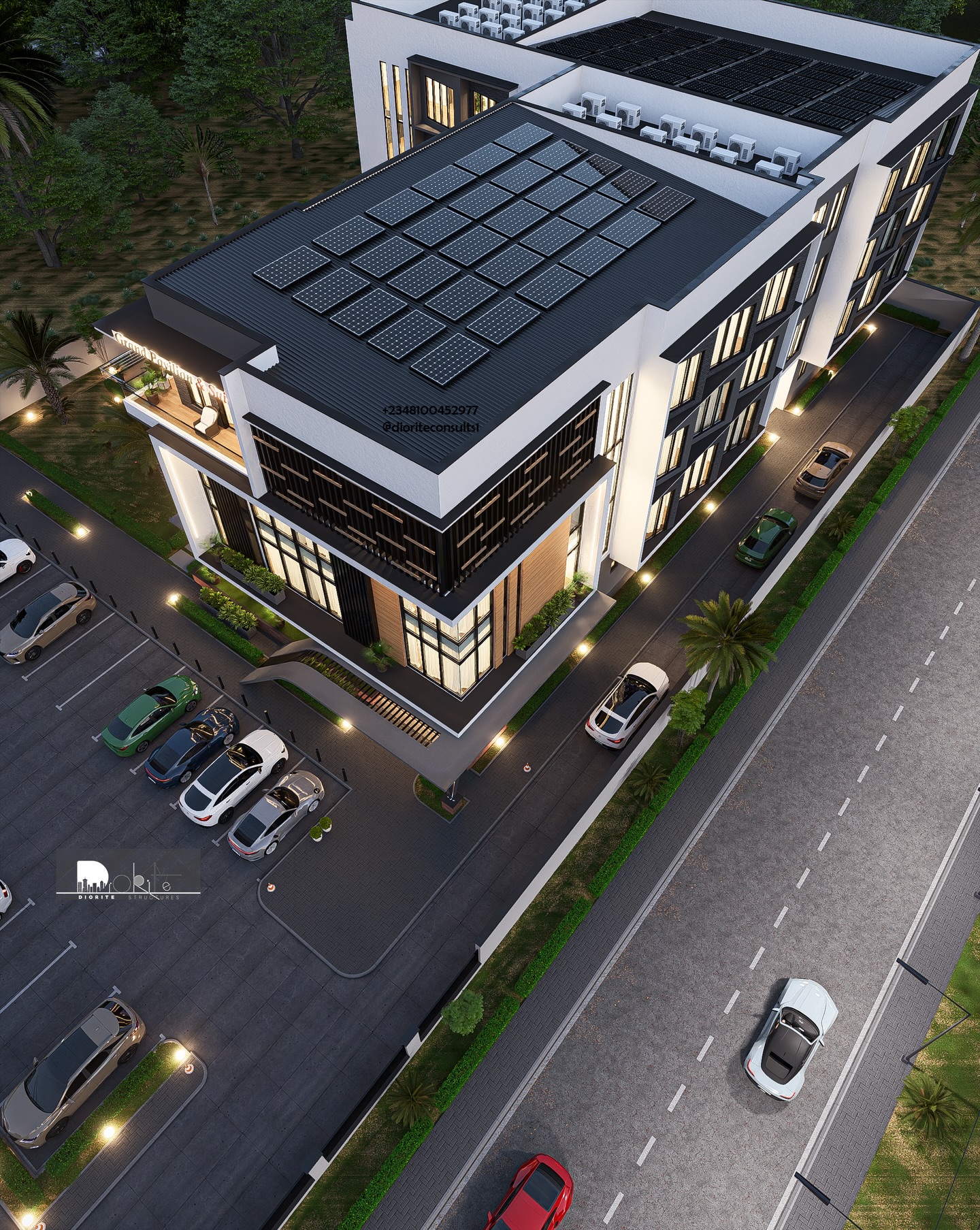

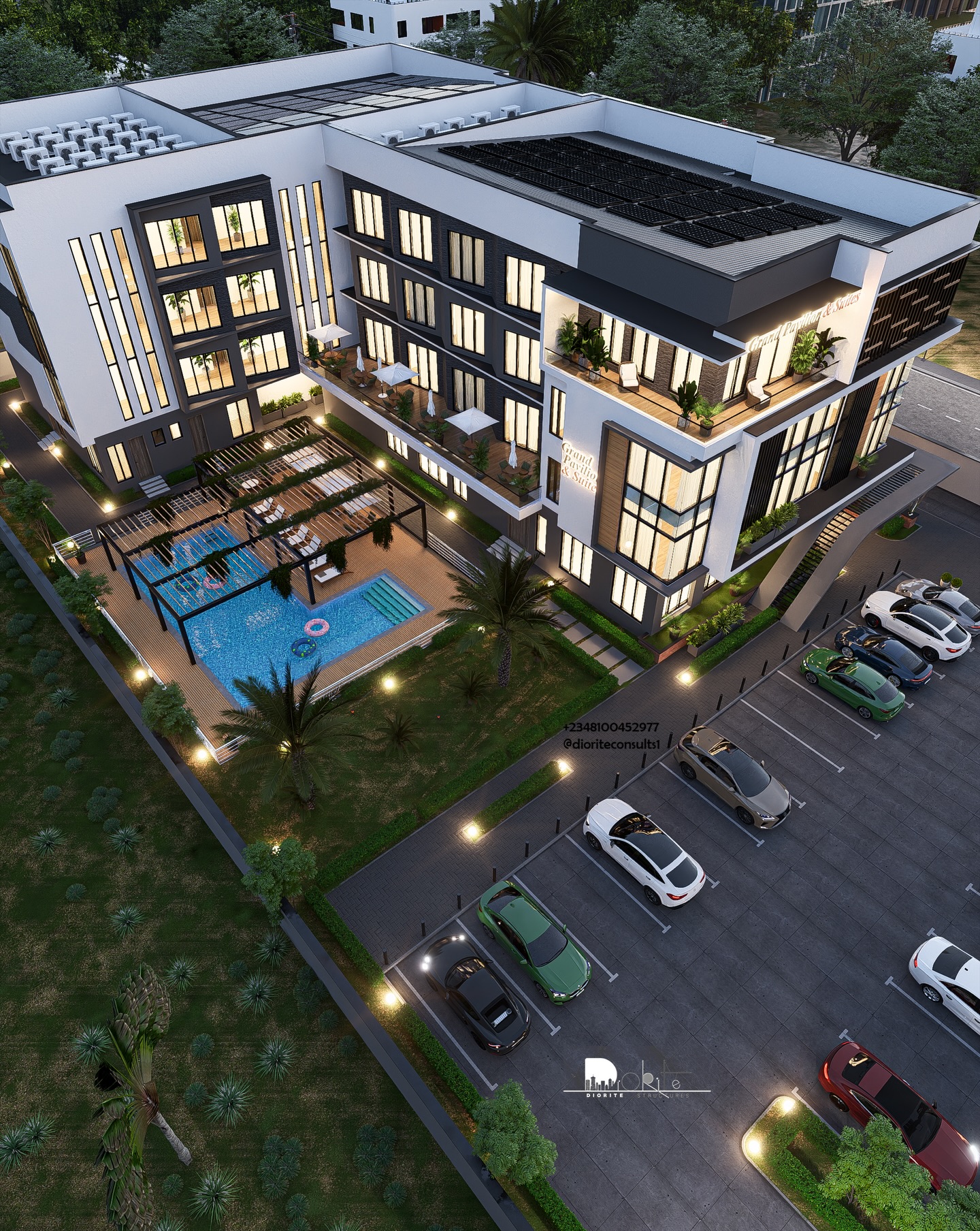

Number of parking spot; 40+ cars
Multipurpose Hall; 180+ sitting capacity
For more comprehensive details, kindly check our website link attached to our profile, call or DM us.
———————————————————————
𝐃𝐄𝐒𝐂𝐑𝐈𝐏𝐓𝐈𝐎𝐍 & 𝐒𝐔𝐌𝐌𝐀𝐑𝐘 ▶️✅;
Rising from 3,504 sqm of earth, Grand Pavilion & Suites stands as a sculptural testament to contemporary grace.
A symphony of white, grey, and dark stone, it balances bespoke luxury with modern form. From intimate chambers to expansive suites, every corner curated for an unrivaled experience.

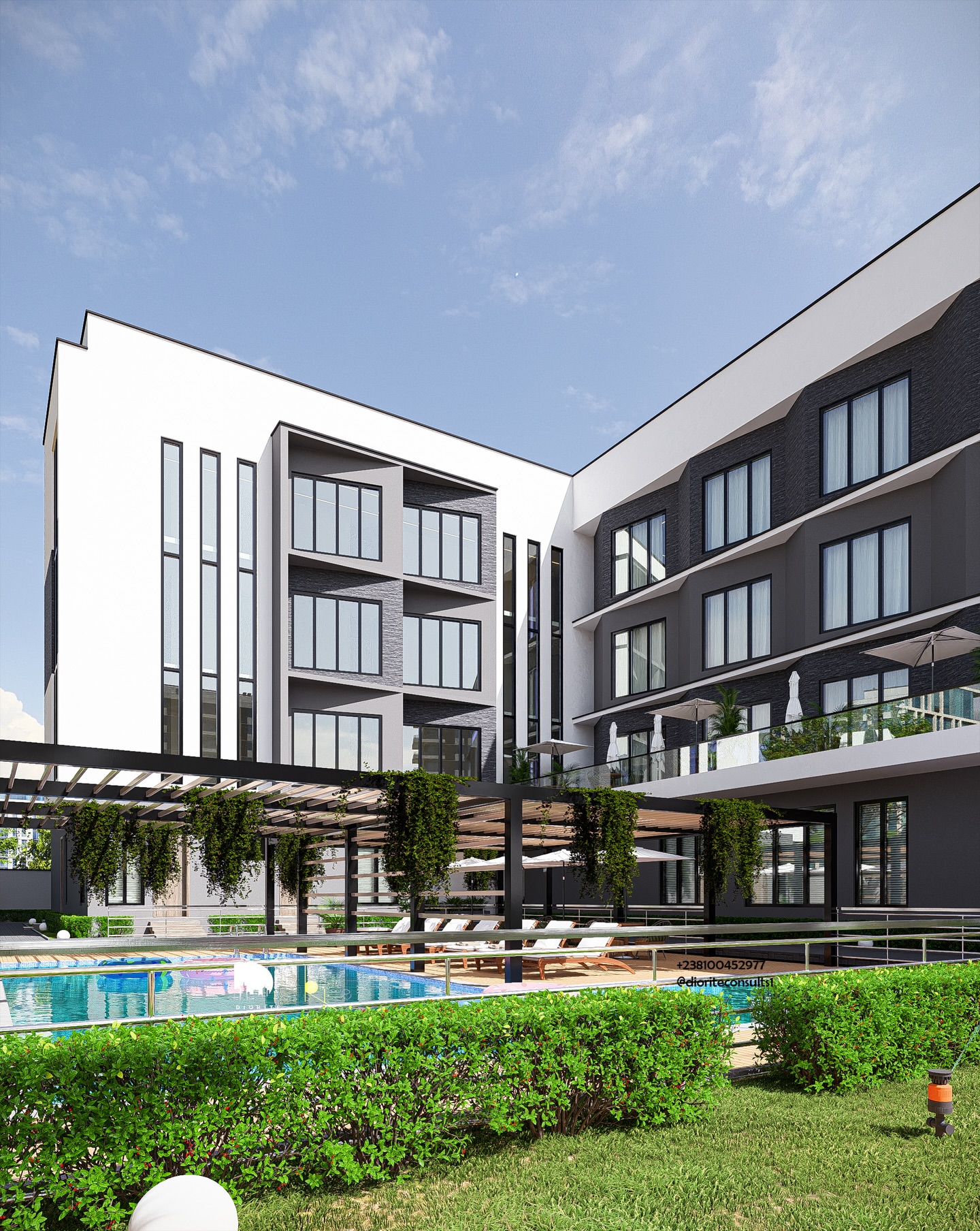

Where culinary artistry meets the open-air pulse of the terrace and pool, it remains more than a structure—it is an enduring statement of elegance.
_______________________________________________
Send us your design brief, for your next project starts with a good functional design.
This masterpiece comes with some amazing features such as;
* Well lit and integrated
* Wide window for daylight, ventilation and aesthetics
*High quality finishes
*Lot of greeneries
*Modern and versatile kitchen
*Spacious rooms with flexible use possibilities
PLAN DETAILS
Stories/Floors; 4
Bedrooms; 55 all ensuite
Restroom/Toilet; 66
Lounges/Living room; 17
Dining/Bar; 1
Reception; 1
Manager’s Office; 1
Accountant’s Office; 1
Linen Room; 5
Enclosed Kitchen; 1
Laundry; 1
Store/pantry; 1
Open sitout; 17
Parking lot; 40+
Patio; 2

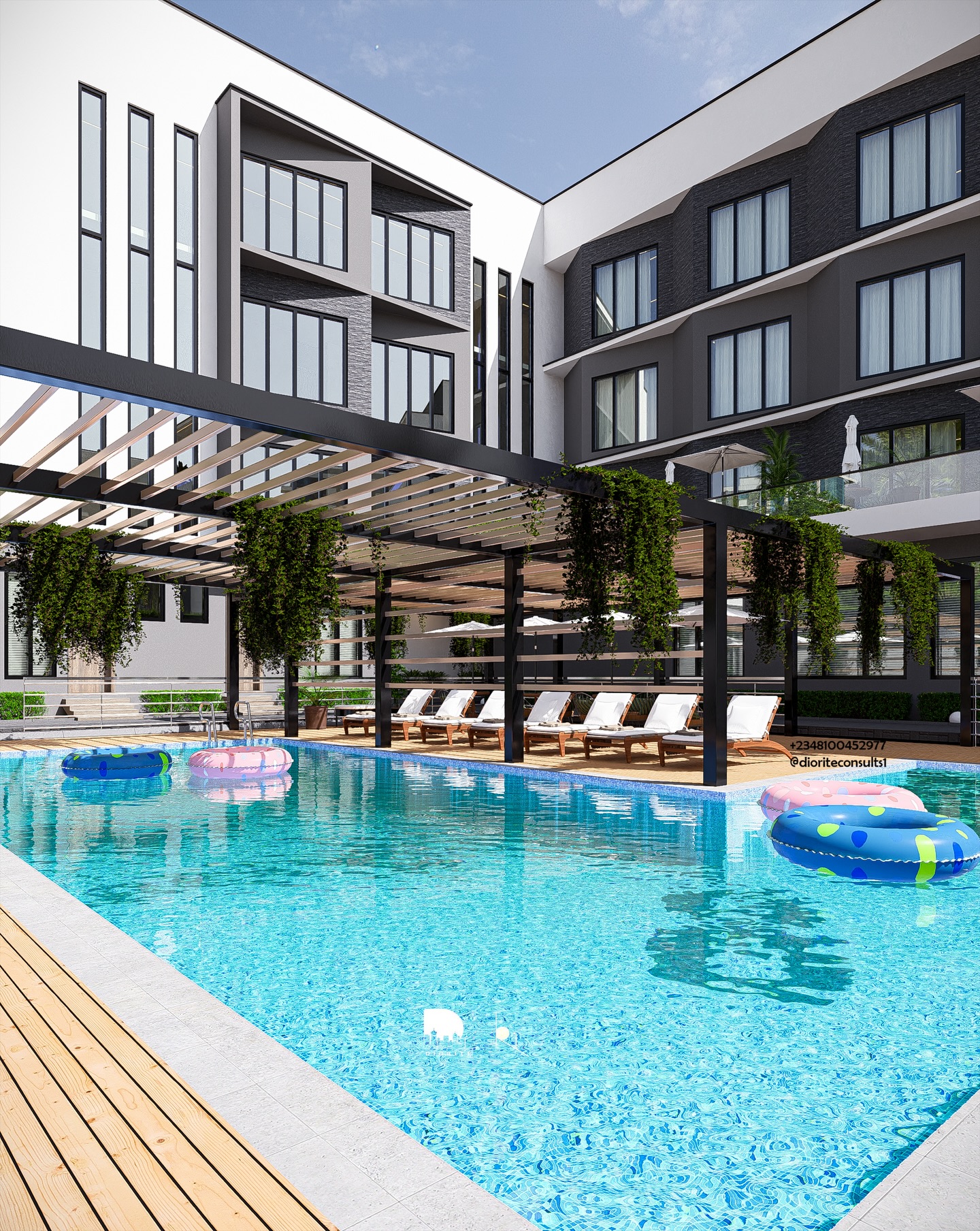

Swimming Pool; 1
Lift; 1
Stairway; 3
Hall Capacity; 180+ Sitters
DRAWING PACKAGES
BRONZE PACKAGE || GOLD PACKAGE || PREMIUM PACKAGE
PRICES DIFFER PER PACKAGE BUT ALL COME WITH THESE COMMON DOCUMENTS.
Site Plan
Foundation Layout Plan
Floor Plans
Roof Plans
Sections
Elevations
Construction Details
Doors and Windows Schedule
Floor Finishes and Furniture Layout Plans
Soak away and Septic tank details
Schematic details
Structural Drawings, Mechanical Drawings and Electrical Drawings depends on the package you’re interested in
Drawings delivered in PDF format via mail for Foreign Buyers and Clients.
For buyers and clients within Nigeria, drawings delivered in PDF format via mail, hardcopy delivery with ARCON & COREN stamp depending on what you want all to be delivered to your respective states.
For your Building Plans and Construction works kindly reach out to us via
Call/WhatsApp: 0810 045 2977 or 0812 716 7275
Mail: info@dioritestructures.com.ng OR. dioritestructures@gmail.com
WEBSITE: www.dioritestructures.com.ng
