PROPOSED GAS STATION// DELTA STATE; F – SYNERGYGATES LTD RF NO; {FS02D}

Tweet

GAS STATION; F – SYNERGYGATES LTD

PLOT SIZE; 1,495 sqm  {16,611 sqft}

LOCATION: DELTA STATE 🇳🇬

DESIGNED AND VISUALIZED by: Dioritestructures Ltd

SPACE ALLOCATION AND DESCRIPTION

MINIMUM LAND SIZE; 1,495 sqm ~ 16,611 sqft

BUILDING AREA; 195 Sqm ~ 2,167 Sqft

LENGTH ❌ BREADTH;   17,050 mm by 15,525 mm

BUILDING HEADROOM; 3,600 mm {12 ft} Floor to Ceiling

NUMBER OF TANKS; 3 {THREE}

NUMBER OF OFFICES;      2 {TWO}

NUMBER OF RESTROOM;  4 {FOUR}

NUMBER OF FLOORS;        1 {ONE}

TOTAL CAPACITY OF THE UNDERGROUND TANK; 140,000 LITRES

ROUGH ESTIMATE (COST/CARCASS; FOUNDATION TO ROOFING); NIL {without finishing & furnishing}

_____________________________________________________________

𝐏𝐋𝐀𝐍 𝐃𝐄𝐒𝐂𝐑𝐈𝐏𝐓𝐈𝐎𝐍 {𝐒𝐔𝐌𝐌𝐀𝐑𝐘}

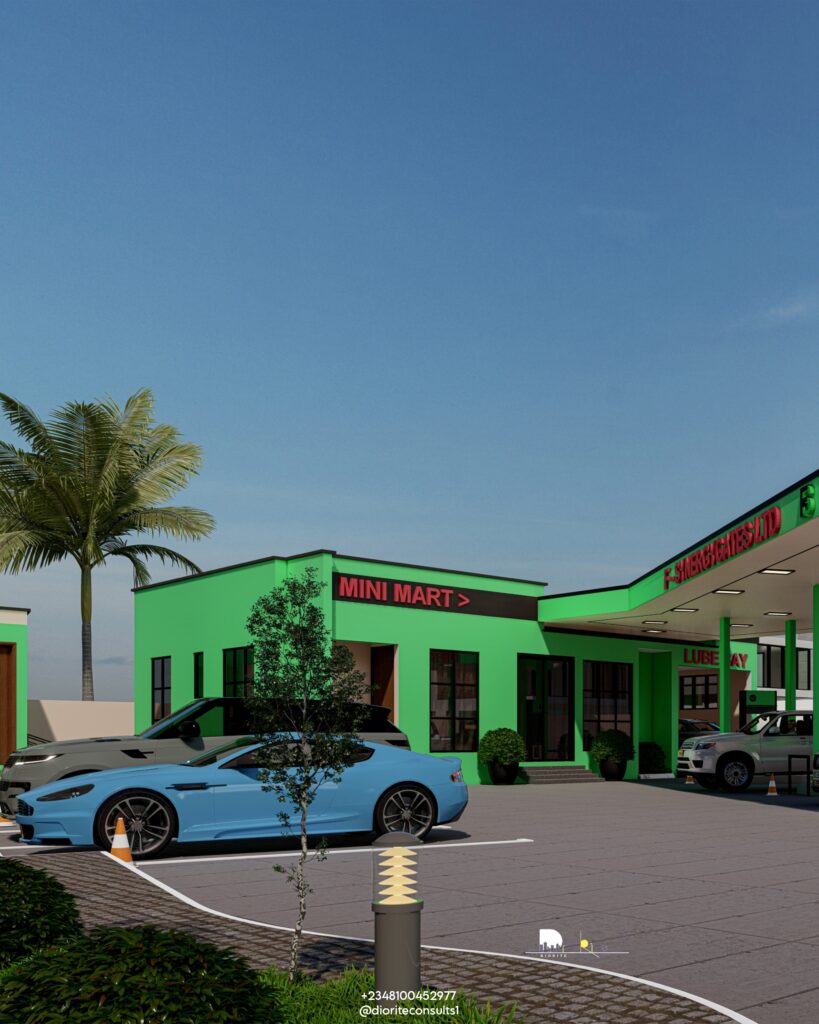

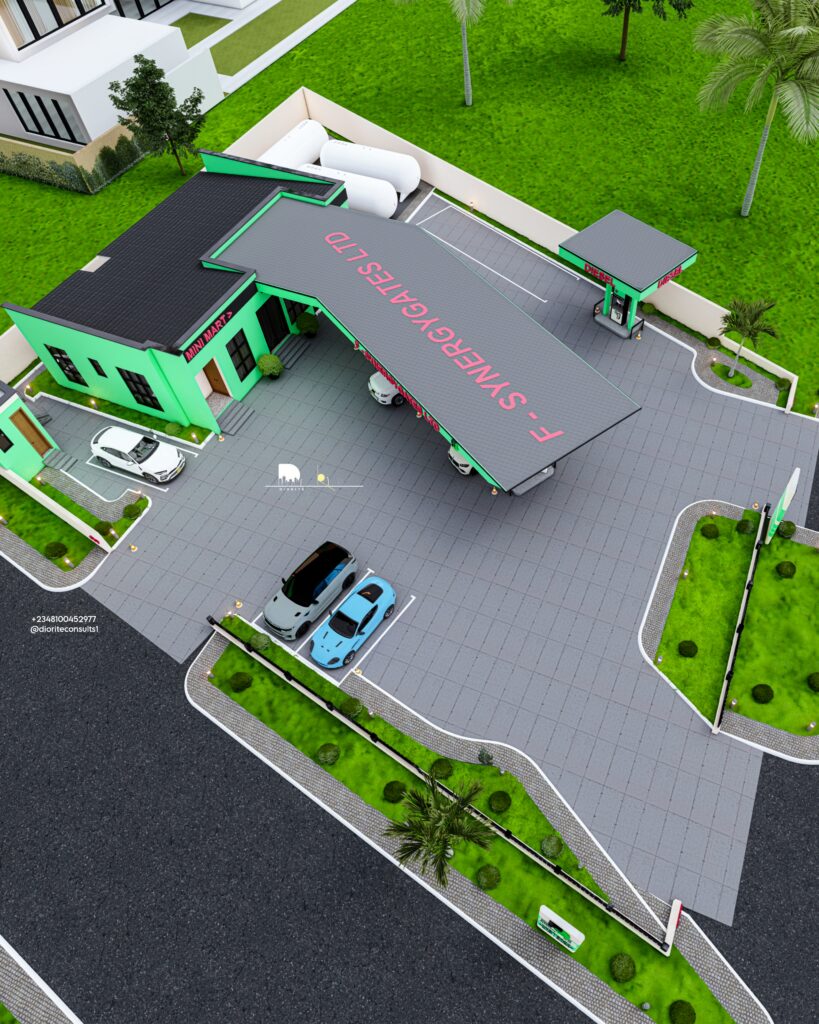

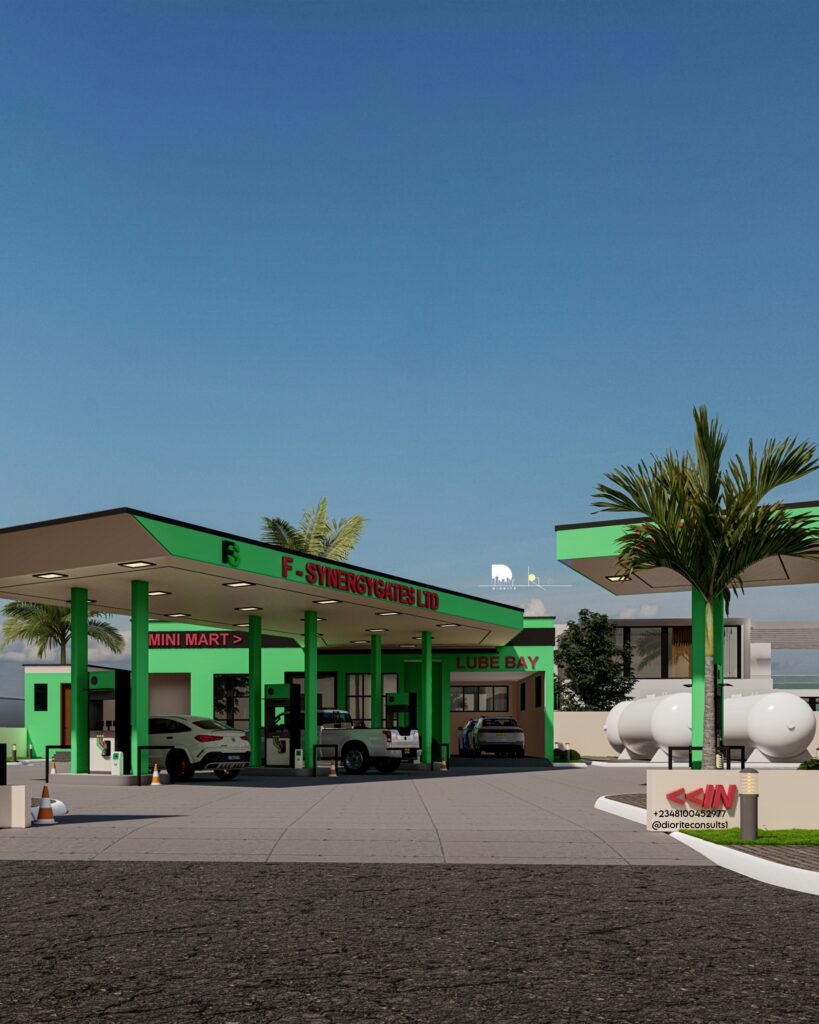

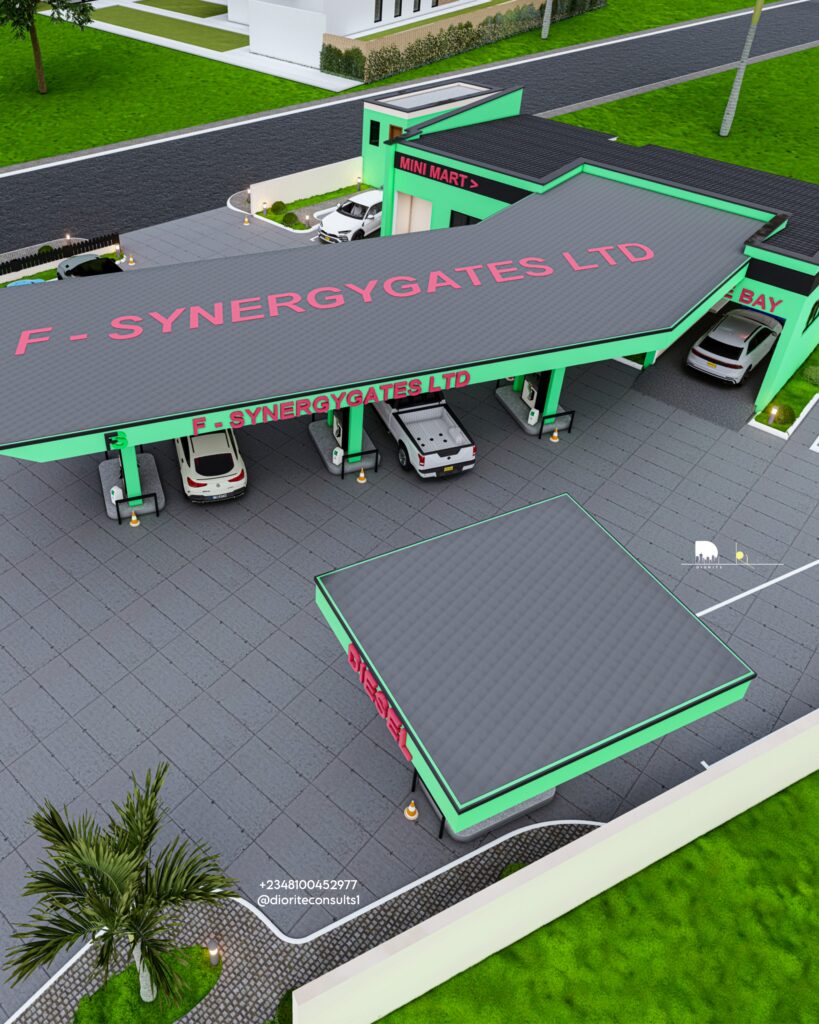

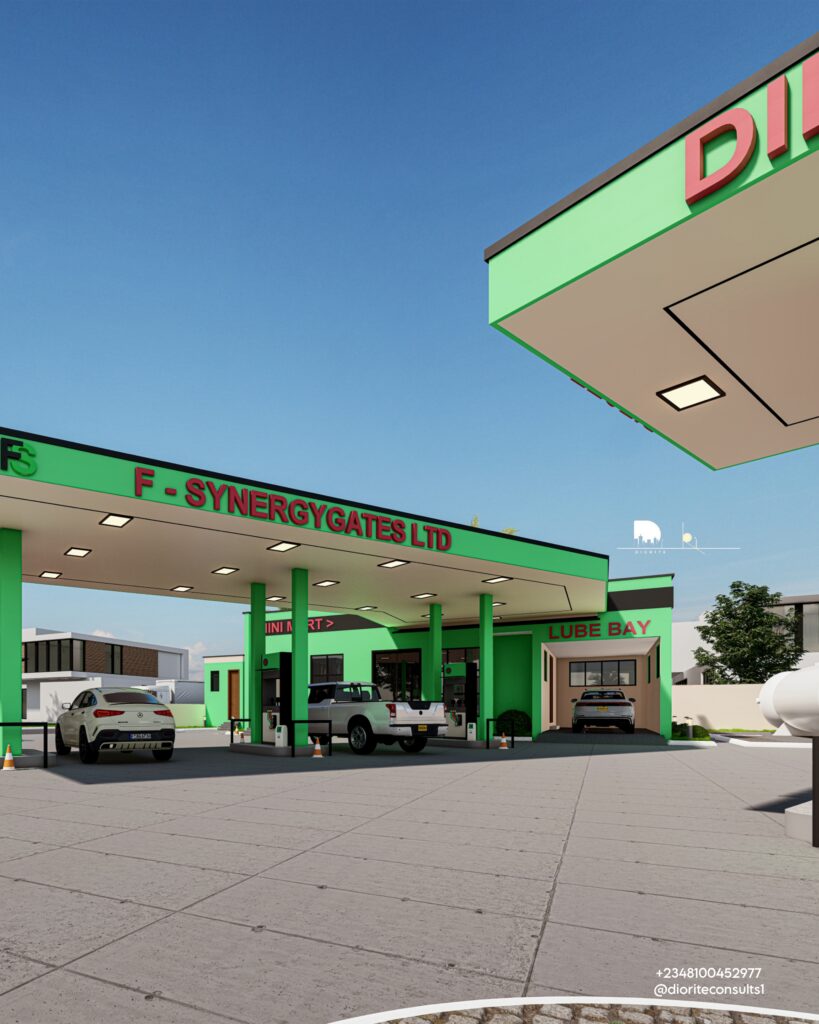

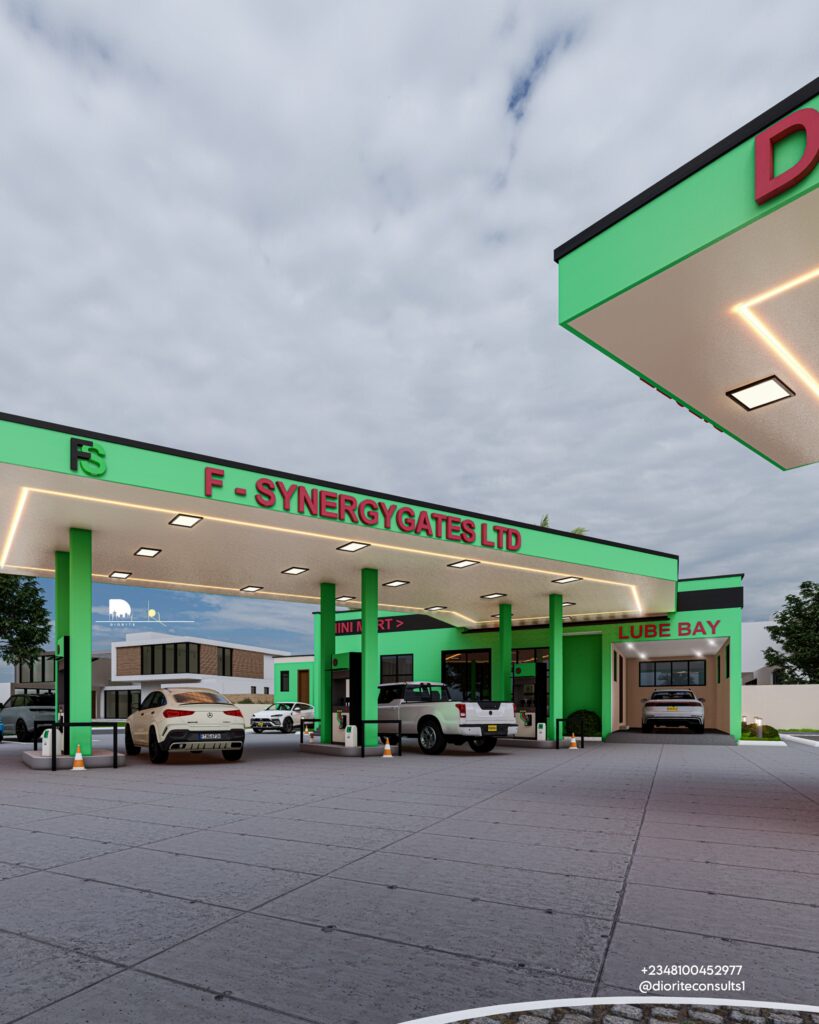

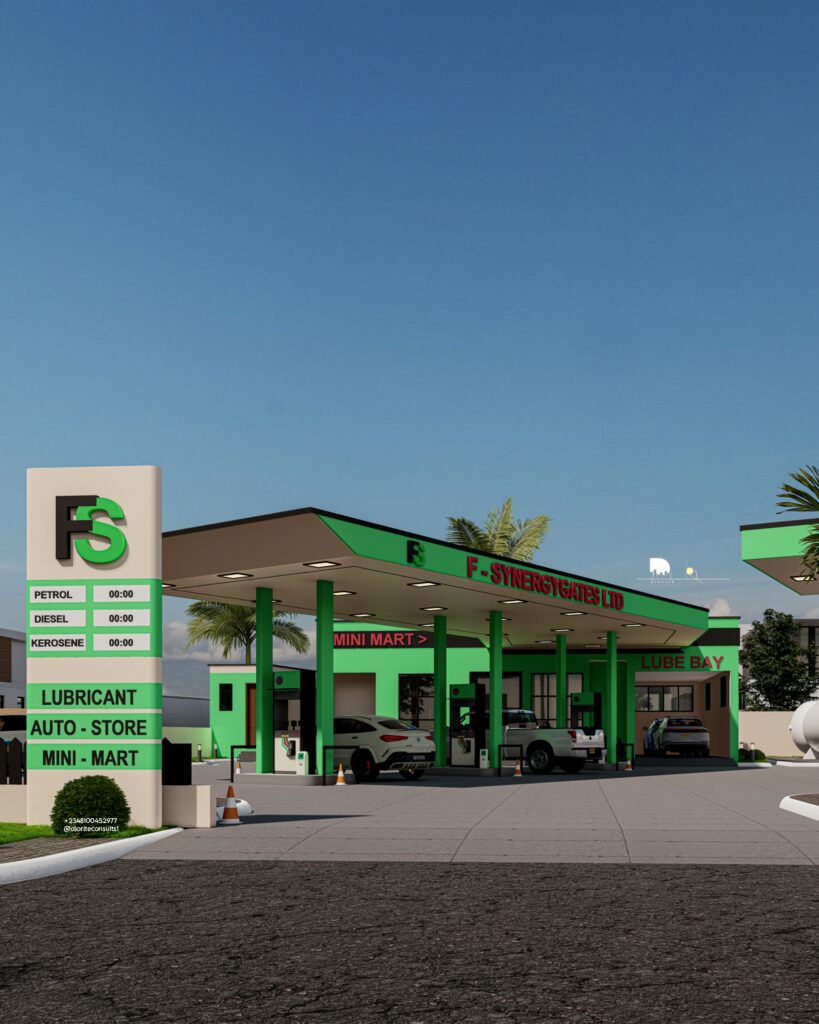

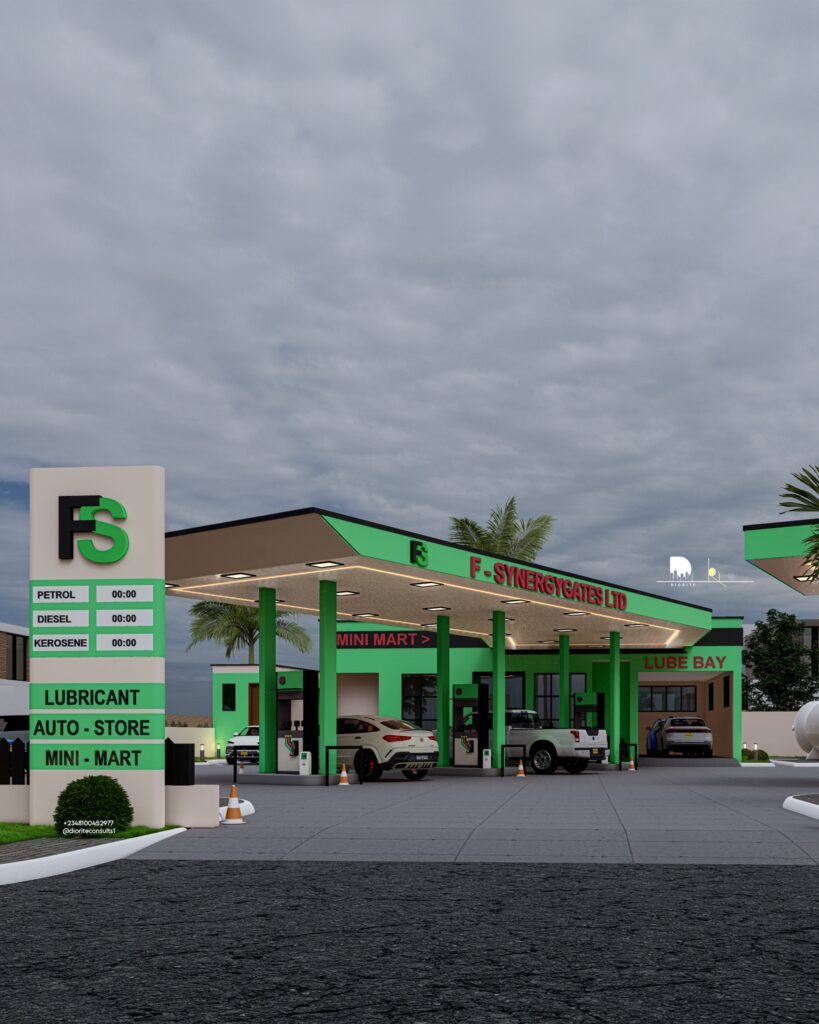

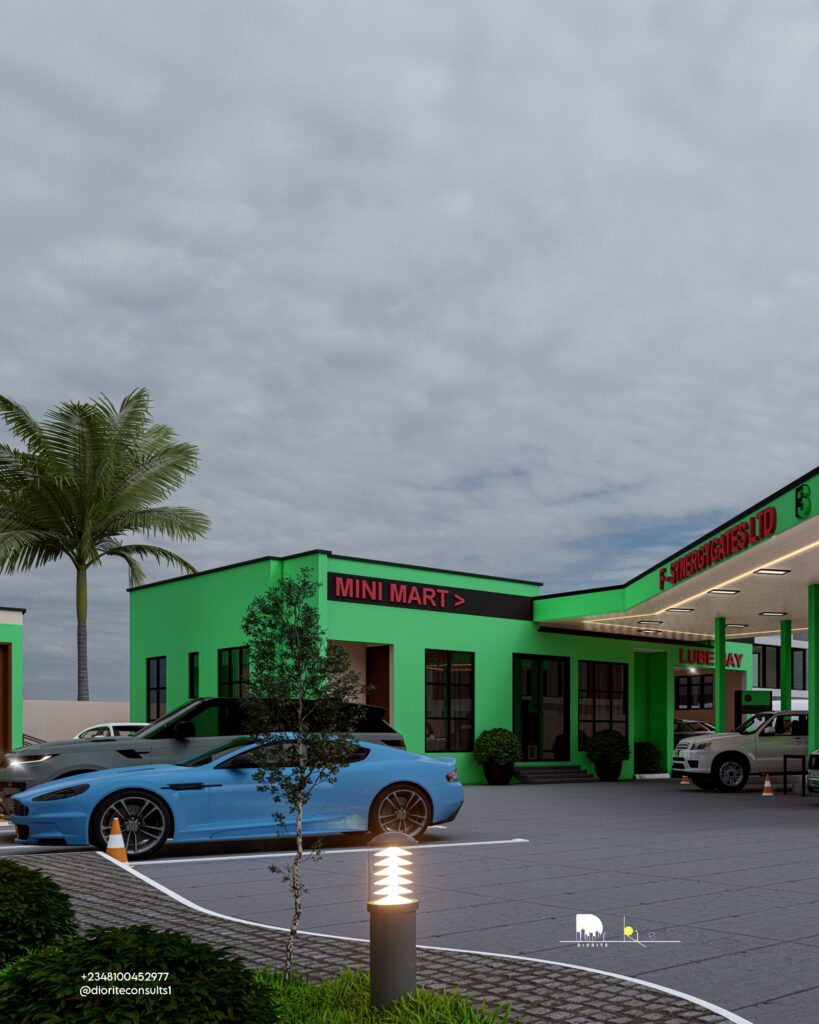

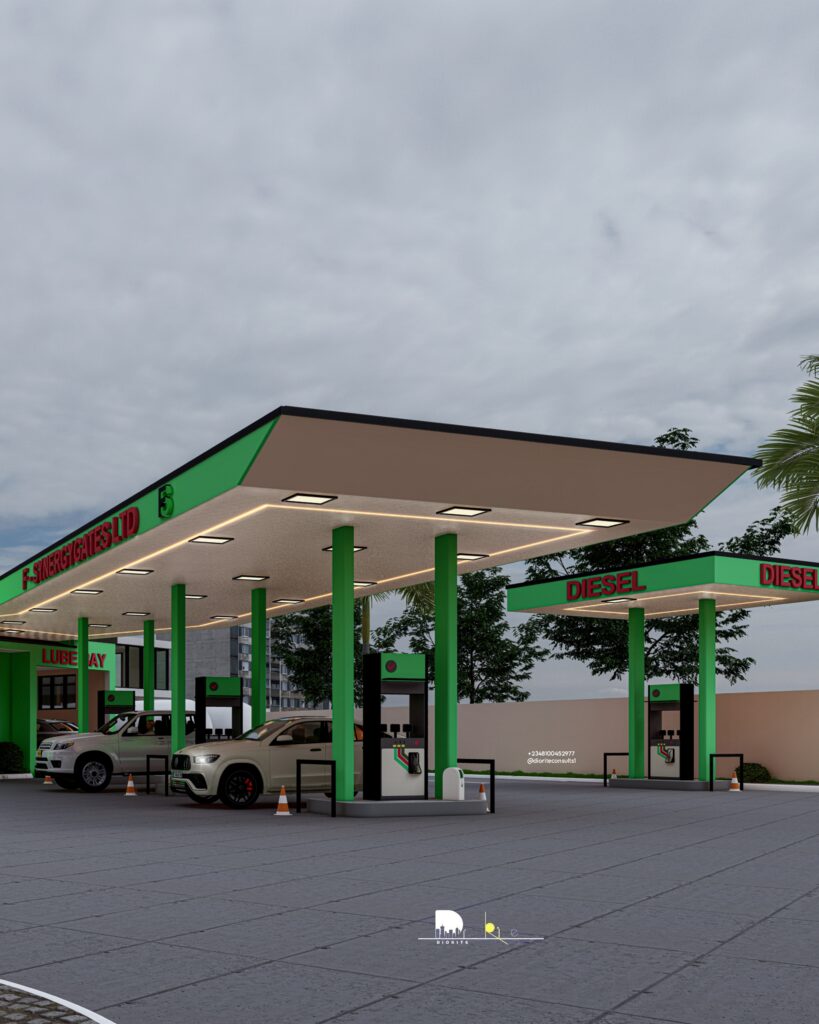

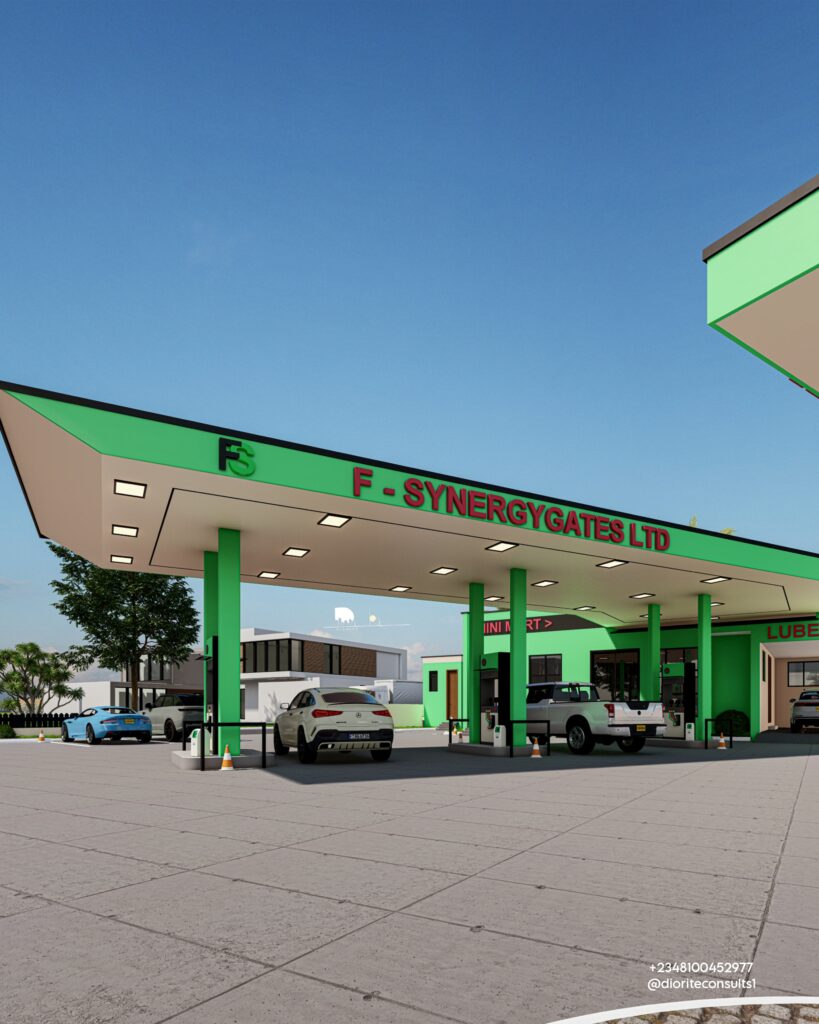

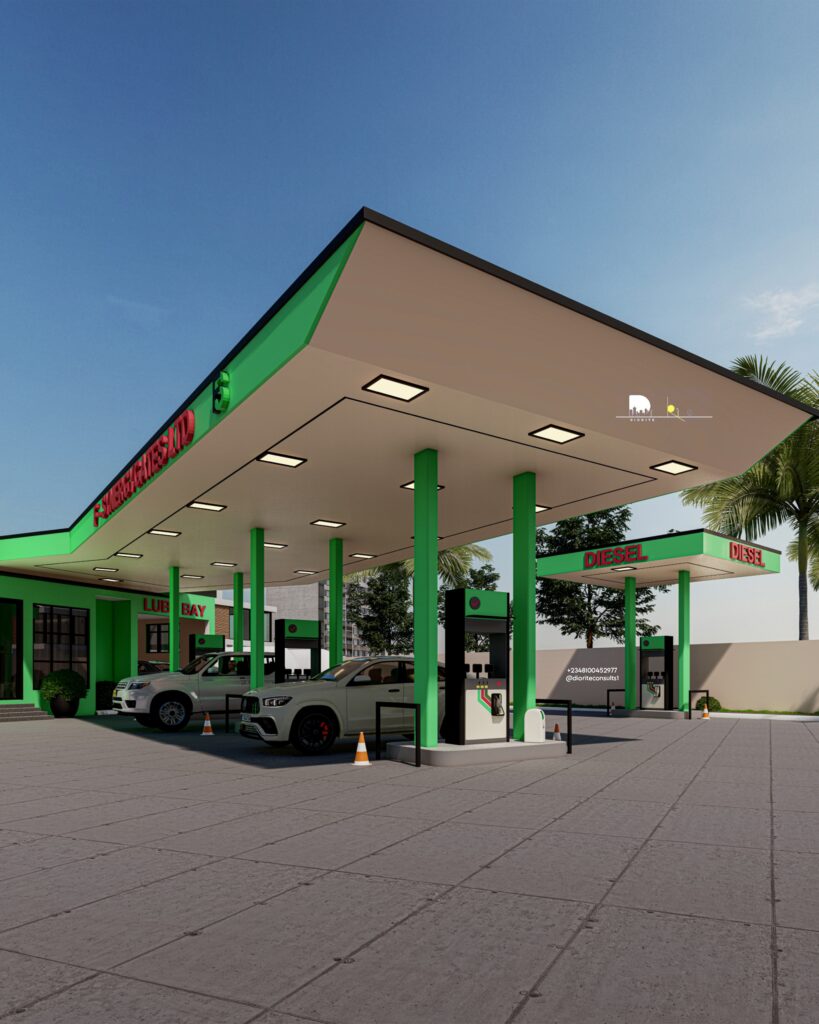

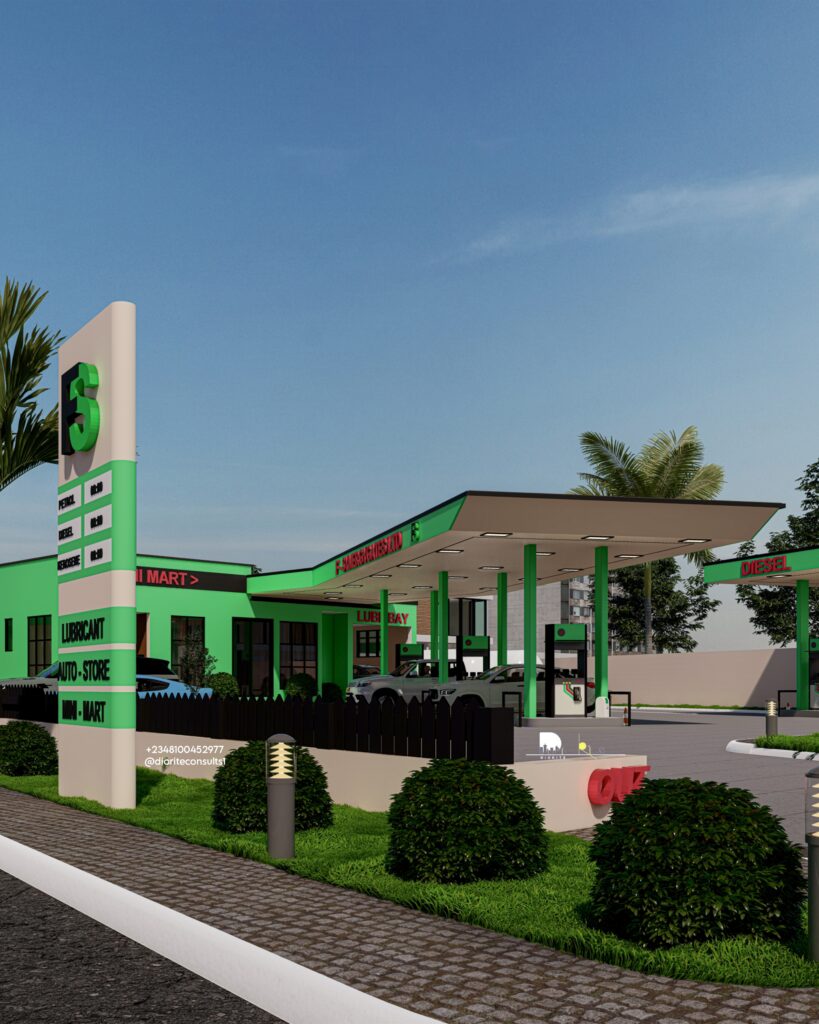

A conceptualized proposed gas station seating on 1,495 sqm of land. The property boast of 2 offices, lube bay to accommodate two cars at once, two box rooms, inverter space, generator house, a public restroom, mini Mart with restroom, 3 PMS gas pump 1 PMS diesel pump, 3 car parking lot among other features.

PLAN DETAILS

Stories/Floors; 1

PMS pump; 4

Restroom/Toilet; 4

Offices; 2

Mini Mart; 1

Lube bay; 1

Gen. Set;1

Inverter space; 1

Box Room; 2

General Parking; 3 Cars

Entry and Exit; 3

DRAWING PACKAGES

BRONZE PACKAGE || GOLD PACKAGE || PREMIUM PACKAGE

PRICES DIFFER PER PACKAGE BUT ALL COME WITH THESE COMMON DOCUMENTS.

Site Plan

Foundation Layout Plan

Floor Plans

Roof Plans

Sections

Elevations

Construction Details

Schematic details

Structural Drawings, Mechanical Drawings and Electrical Drawings depends on the package you’re interested in

Drawings delivered in PDF format via mail for Foreign Buyers and Clients.

For buyers and clients within Nigeria, drawings delivered in PDF format via mail, hardcopy delivery with ARCON AND COREN stamp depending on what you want all to be delivered to your respective states.

For your Building Plans and Construction works kindly reach out to us via

Call/WhatsApp: 0810 045 2977 or 0812 716 7275

Mail: info@dioritestructures.com.ng OR. dioritestructures@gmail.com

WEBSITE: www.dioritestructures.com.ng
