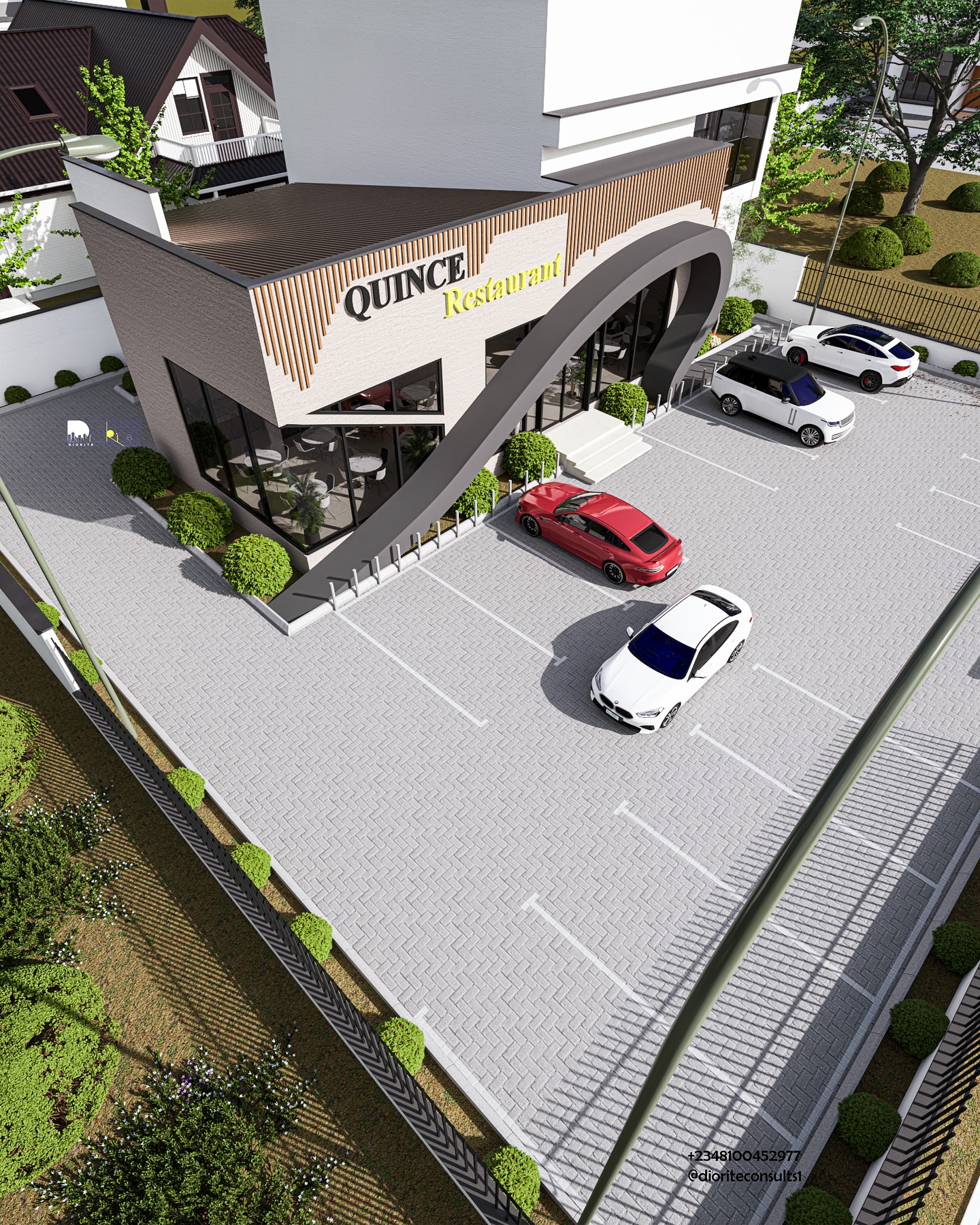

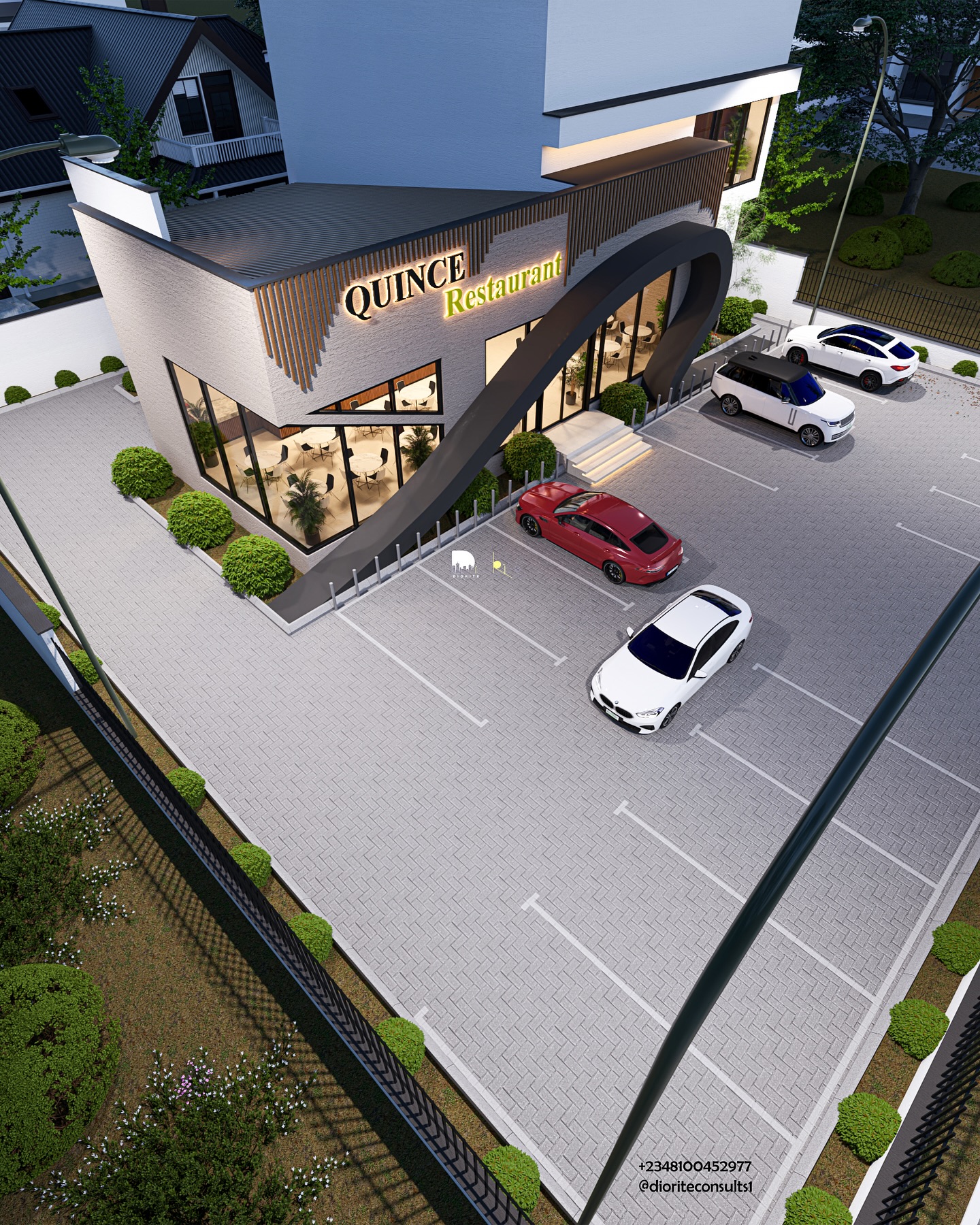

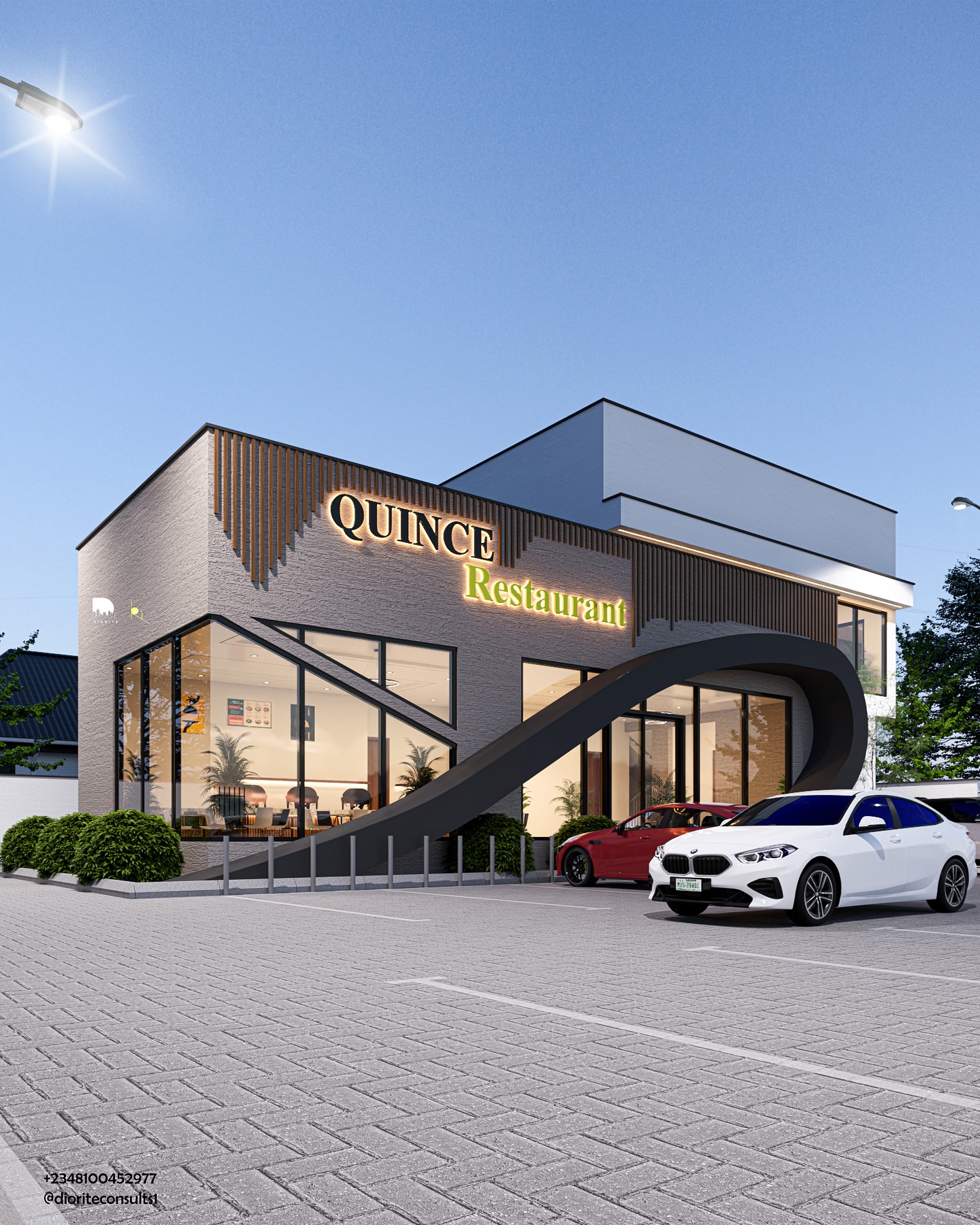

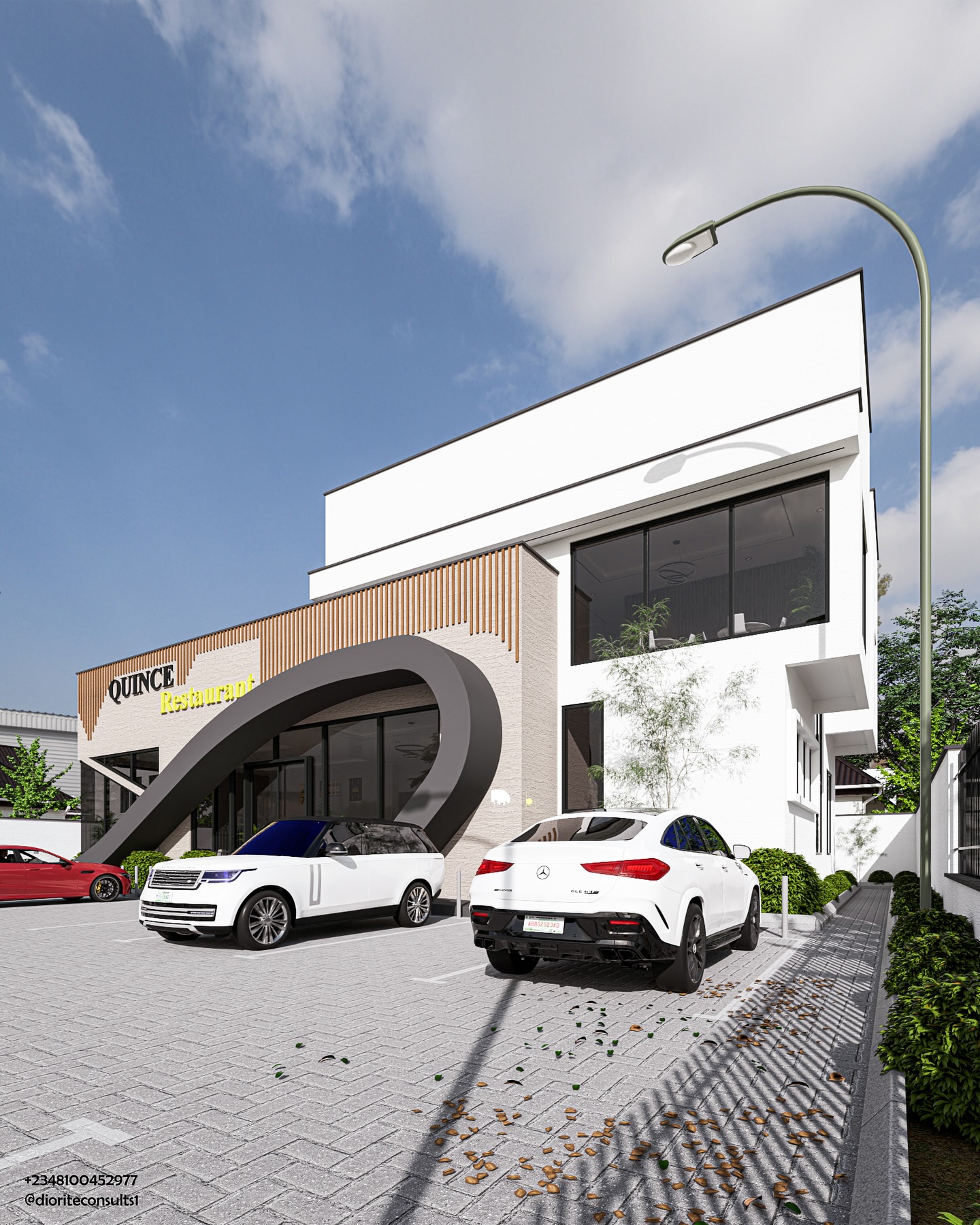

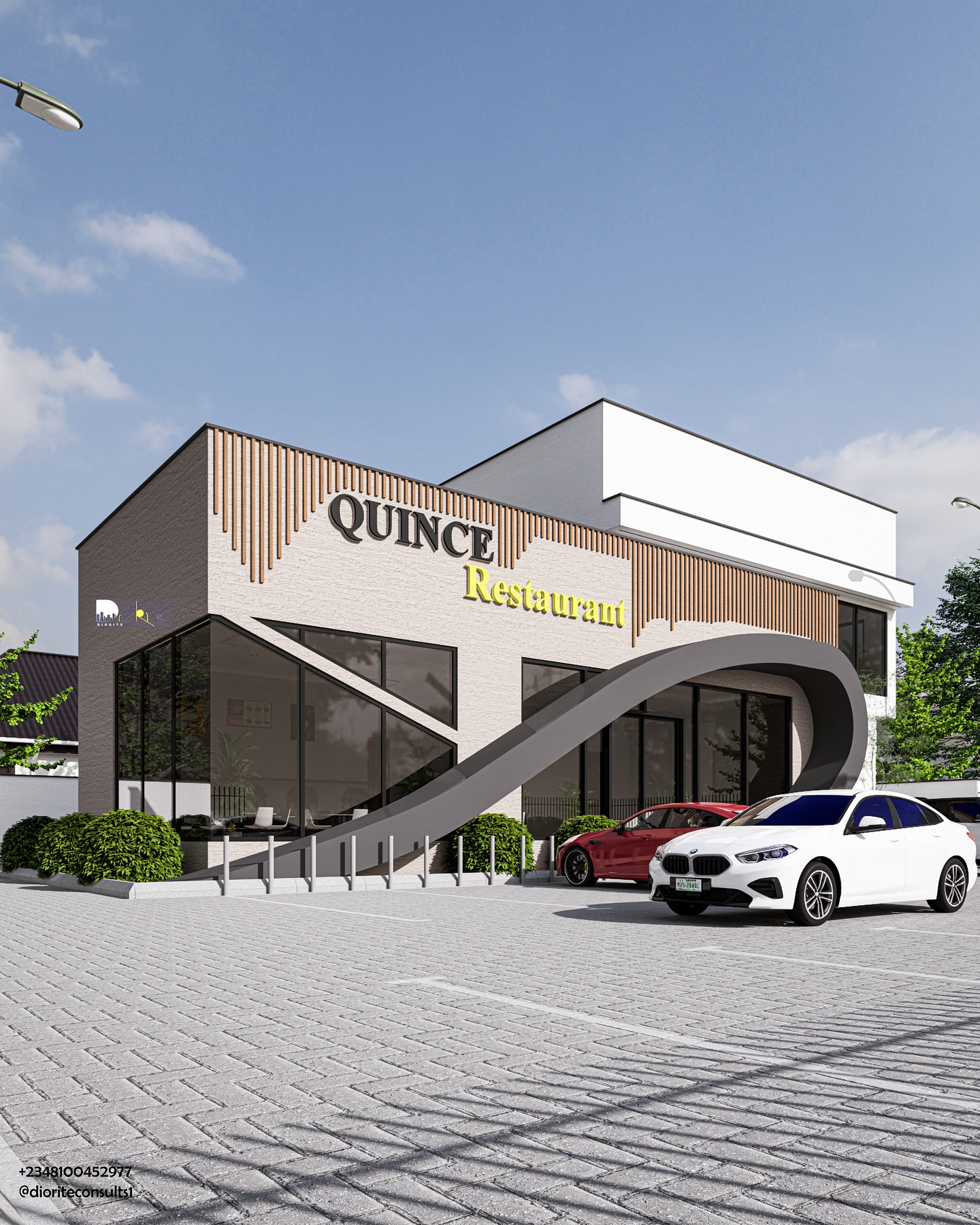

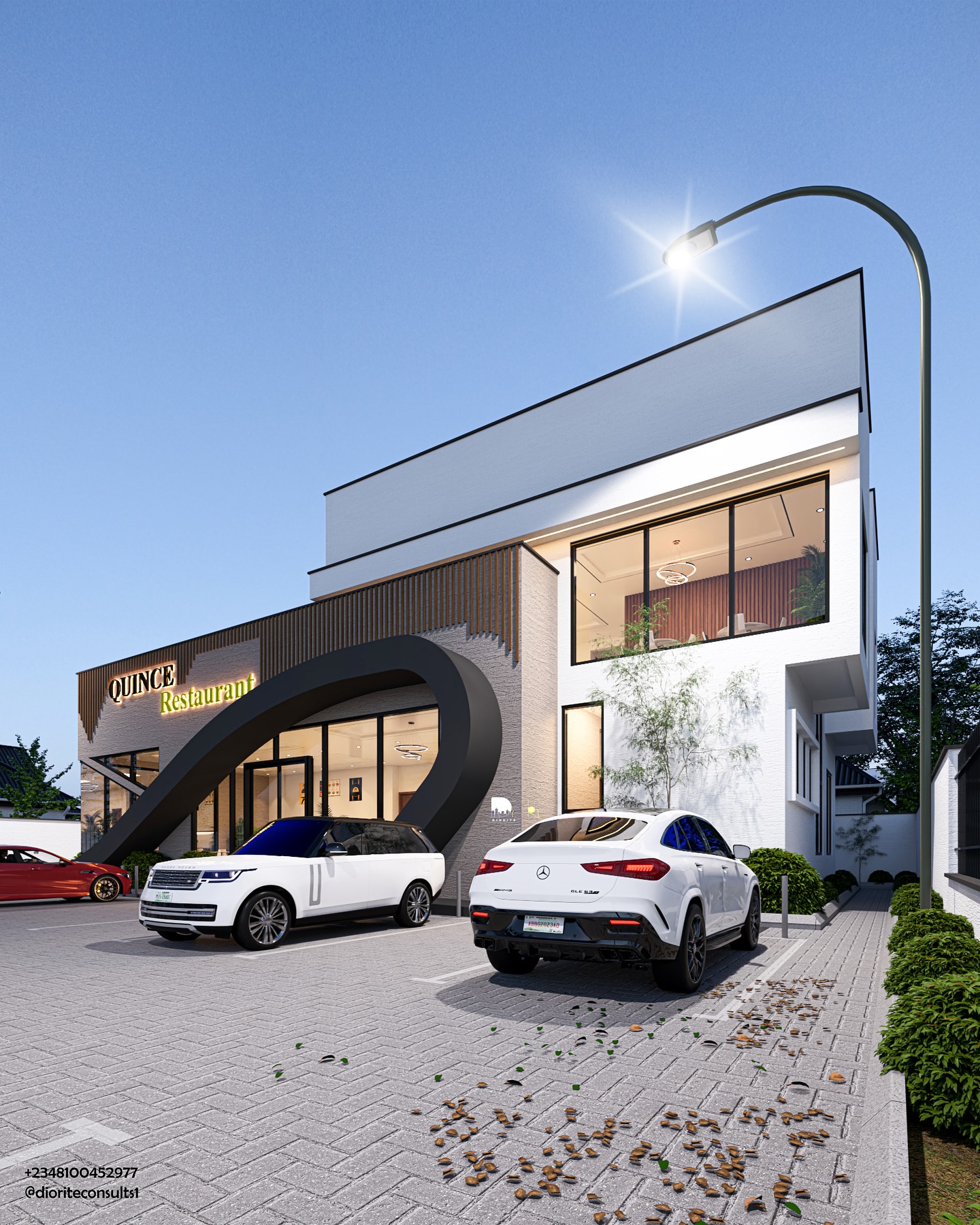

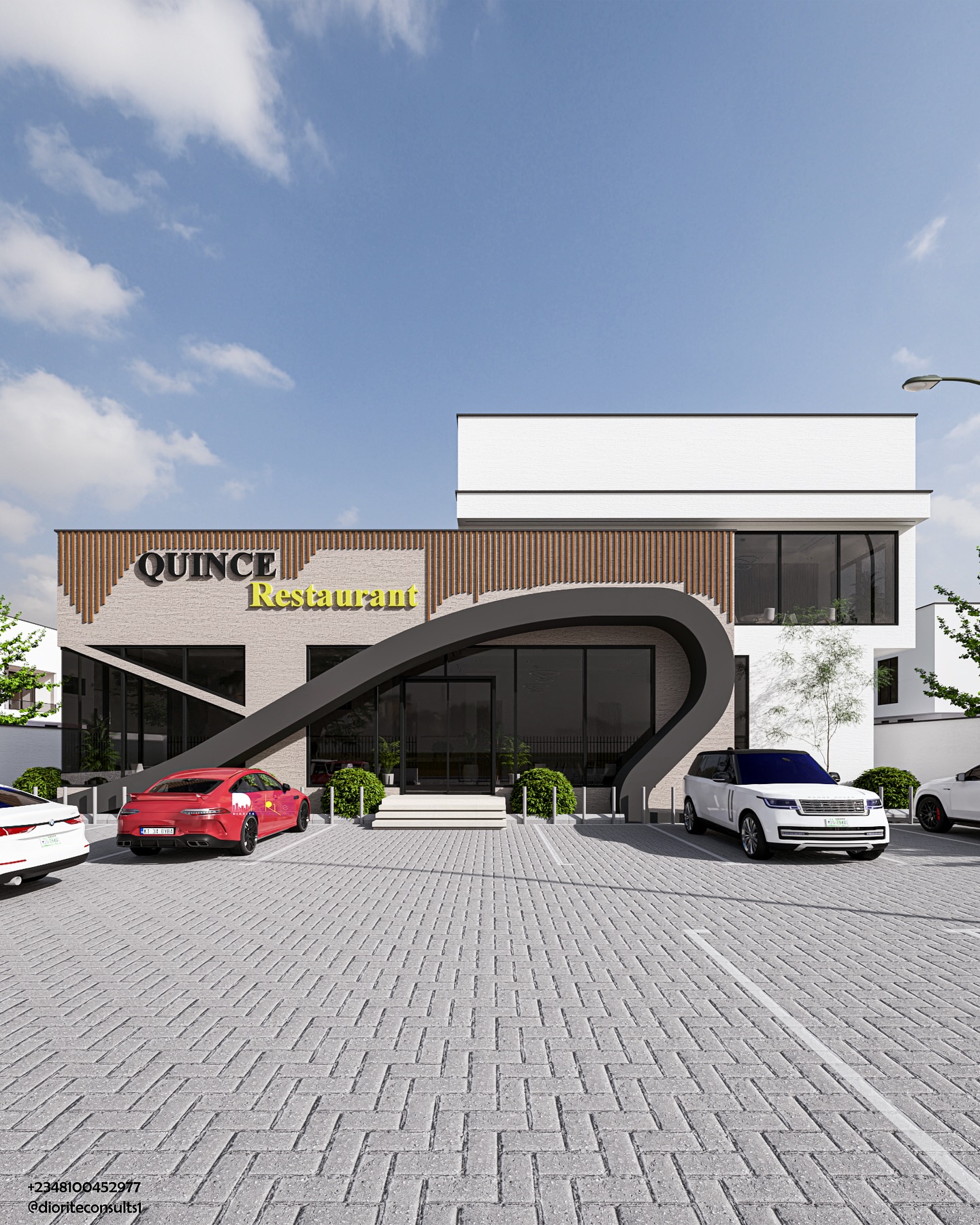

QUINCE RESTAURANT
PLOT SIZE; 1,036.5 Sq.m {11,517 Sq.ft}
LOCATION: ASABA, DELTA STATE.
DESIGNED AND VISUALIZED by: Dioritestructures Ltd
SPACE ALLOCATION AND DESCRIPTION
MINIMUM LAND SIZE; 900 Sq.m ~ 10,000 sqft
BUILDING AREA; 287.192 Sq.m ~ 3,191 Sq.ft
LENGTH ❌ BREADTH; 15,035 mm by 22,750 mm
BUILDING HEADROOM; 4,500 & 4,000 mm {15 & 13.33 ft} Floor to Ceiling Respectively.
NUMBER OF SEATERS; 100+ {ONE HUNDRED +}
NUMBER OF OFFICES; 3 {THREE}
NUMBER OF RESTROOM; 9 {NINE}
NUMBER OF FLOORS; 2 {TWO}
ROUGH ESTIMATE (COST/CARCASS; FOUNDATION TO ROOFING); N45-52m {without finishing & furnishing}
_______________________________________
PLAN DETAILS
Stories/Floors; 2
Offices ; 3 and each with restroom
Restroom/Toilet; 9
Lounge Area; 2
Delivery Store/Pantry; 1
Electrical Room; 1
Enclosed Kitchen; 1
Bar Area; 1
Changing Room; 2 with one restroom each
General Parking; 15+ Cars
DRAWING PACKAGES
BRONZE PACKAGE || GOLD PACKAGE || PREMIUM PACKAGE
PRICES DIFFER PER PACKAGE BUT ALL COME WITH THESE COMMON DOCUMENTS.
Site Plan
Foundation Layout Plan
Floor Plans
Roof Plans
Sections
Elevations
Construction Details
Doors and Windows Schedule
Floor Finishes and Furniture Layout Plans
Soak away and Septic tank details
Schematic details
Structural Drawings, Mechanical Drawings and Electrical Drawings depends on the package you’re interested in
Drawings delivered in PDF format via mail for Foreign Buyers and Clients.
For buyers and clients within Nigeria, drawings delivered in PDF format via mail, hardcopy delivery with ARCON AND COREN stamp depending on what you want all to be delivered to your respective states.
For your Building Plans and Construction works kindly reach out to us via
Call/WhatsApp: 0810 045 2977 or 0812 716 7275
Mail: info@dioritestructures.com.ng OR. dioritestructures@gmail.com
WEBSITE: www.dioritestructures.com.ng
Thanks for the patronage.
